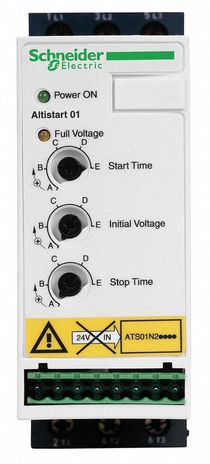

Square D ATS01N212RT

Name: Square D ATS01N212RT
Brand: Square D
SKU: CS1781316
Price: 200.04 USD
Availability: OutOfStock

SKU: CS1781316MPN: ATS01N212RT

soft starter for asynchronous motor, Altistart 01, ATS01, 12A, 460 to 480V

$200.04

Unit

Available on backorder

Quantity

remove

add

Product Details

Altistart 01 Soft Start (ATS01)

For Asynchronous Motor* lcL Starter Rating: 12A* US Rated Supply Voltage: 460-480V* Motor Power Horsepower: 7.5 HP* Network Number of Phases: Triple-phase* Integrated Bypass* Assembly Style: with Heat Sink

Assembly Style	with heat sink
Compatibility Code	ATS01N2
Deceleration Time Symb	adjustable from 1 to 10 s
Device Short Name	ATS01
Discrete Input Voltage	24…40 V
Function Available	integrated bypass
Marking	CE
Network Frequency	47.5…63 Hz
Network Number Of Phases	3 phases
Operating Position	vertical ± 10 degree
Output Voltage	<= power supply voltage
Product Certifications	UL# #B44.1-96/ASME A17.5 for starter wired to the motor delta terminal# #CSA# #CCC# #C-Tick# #GOST
Product Destination	asynchronous motors
Product Or Component Type	soft starter
Product Specific Application	simple machine
Range Of Product	Altistart 01
Standards	EN/IEC 60947-4-2
Starting Torque	30…80 % of starting torque of motor connected directly on the line supply
Supply Voltage Limits	414-528 V
Tightening Torque	1.9-2.5 N.m# #0.5-0.5 N.m
Tightening Torque 1	1.9-2.5 N.m# #0.5-0.5 N.m
Type Of Start	start with voltage ramp
