Square D ATS01N232RT
SKU: CS1681690MPN: ATS01N232RT
soft starter for asynchronous motor, Altistart 01, ATS01, 32A, 460 to 480V
$342.79
UnitAvailable on backorder
Product Details
Altistart 01 Soft Start (ATS01)
- For Asynchronous Motor* lcL Starter Rating: 32A* US Rated Supply Voltage: 460-480V* Motor Power Horsepower: 20 HP* Network Number of Phases: Triple-phase* Integrated Bypass* Assembly Style: with Heat Sink
Attributes
| Assembly Style | with heat sink |
| Compatibility Code | ATS01N2 |
| Deceleration Time Symb | adjustable from 1 to 10 s |
| Device Short Name | ATS01 |
| Discrete Input Voltage | 24…40 V |
| Function Available | integrated bypass |
| Marking | CE |
| Network Frequency | 47.5…63 Hz |
| Network Number Of Phases | 3 phases |
| Operating Position | vertical ± 10 degree |
| Output Voltage | <= power supply voltage |
| Product Certifications | B44.1-96/ASME A17.5 for starter wired to the motor delta terminal# #CCC# #UL# #CSA# #C-Tick# #GOST |
| Product Destination | asynchronous motors |
| Product Or Component Type | soft starter |
| Product Specific Application | simple machine |
| Range Of Product | Altistart 01 |
| Standards | EN/IEC 60947-4-2 |
| Starting Torque | 30…80 % of starting torque of motor connected directly on the line supply |
| Supply Voltage Limits | 414-528 V |
| Tightening Torque | 1.9-2.5 N.m# #0.5-0.5 N.m |
| Tightening Torque 1 | 1.9-2.5 N.m# #0.5-0.5 N.m |
| Type Of Start | start with voltage ramp |
Specifications
| SKU | CS1681690 |
|---|---|
| MPN | ATS01N232RT |
You may also like
Square D ATS01N209RT
$173.60Unit
Square D ATS01N212RT
$200.04UnitSquare D ATS01N206RT
$151.57UnitSquare D ATS01N222RT
$250.27UnitSquare D ATS01N232LU
$342.79Unit
Square D ATS01N125FT
$274.50Unit
Square D ATS01N112FT
$165.67Unit
Square D ATS01N206LU
$151.57Unit
Square D ATS01N209LU
Contact us for pricing and availability
Square D ATS01N222LU
$250.27Unit
Square D ATS01N106FT
$131.30Unit

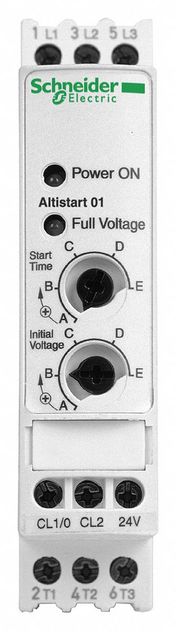

Square D ATS01N103FT
