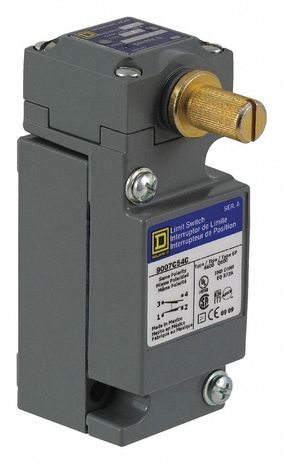

Square D 9007C68T5

Name: Square D 9007C68T5
Brand: Square D
SKU: CS233146
Availability: OutOfStock

SKU: CS233146MPN: 9007C68T5UPC/EAN: 785901812081

Limit switch, 9007, 600 V 10amp c +options

Product Details

Heavy Duty Type C Limit Switch:

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Storage	-20-185 °F
Body Material	zinc
Body Type	plug-in
Contact Form	Form Z
Contact Operation	snap action
Contacts Material	silver contacts
Contacts Type And Composition	2(NC-NO)
Device Short Name	9007C
Electrical Durability	1000000 cycles
Environmental Characteristic	standard environment
Fixing Mode	by the body
Function Available	neutral position
Head Material	zinc
Head Type	rotary head
Material	metal
Maximum Displacement Angle	90 °
Mechanical Durability	10000000 cycles
Movement Of Operating Head	rotary
Number Of Poles	2
Positive Opening	without
Product Or Component Type	limit switch
Product Specific Application	standard box
Protective Treatment	epoxy powder coat
Range Of Product	9007
Sale Per Indivisible Quantity	1.0000
Series Name	heavy duty
Switch Actuation	from left and right# #CW and CCW
Switch Function	2 SPDT-DB
Terminals Description Iso N 1	(3-4)NO# #(7-8)NO# #(5-6)NC# #(1-2)NC
