Square D 8501CO15V14
SKU: CS4809650MPN: 8501CO15V14UPC/EAN: 785901052098
Power Relay, Harmony 8501C, SPDT, coil, screw clamp terminal, 30A, 24V AC, 1NO + 1NC
$36.27
UnitAvailable on backorder
Product Details
Power Relay, SPDT, 1NO and 1NC, 1.5 HP, 30 A resistive at 300 VAC, 24 VAC coil
Attributes
| In Rated Current | 30 A |
| In Rated Current 1 | 30 A |
| Ambient Air Temperature For Operation | -22-122 °F |
| Ambient Air Temperature For Operation 1 | -22-122 °F |
| Catalog Class | 8501.0000 |
| Connections Terminals | screw clamp terminal |
| Contacts Type And Composition | 1 NO/1 NC |
| Device Application | suited for controlling small single phase motors and other light loads |
| Device Short Name | type C |
| Hold In Power Consumption In Va | 10-10 VA |
| Mounting Support | panel mounting |
| Network Number Of Phases | 1 phase |
| Product Certifications | UL listed file E78351 CCN NLDX# #CSA# #CE |
| Product Or Component Type | power relay |
| Range Of Product | Power Relay 8501C |
| Rated Power In Hp | 2.0 hp |
| Switch Function | SPDT |
| Tightening Torque | 11-15 lbf.in |
| Tightening Torque 1 | 11-15 lbf.in |
Specifications
| SKU | CS4809650 |
|---|---|
| MPN | 8501CO15V14 |
| UPC/EAN | 785901052098 |
You may also like

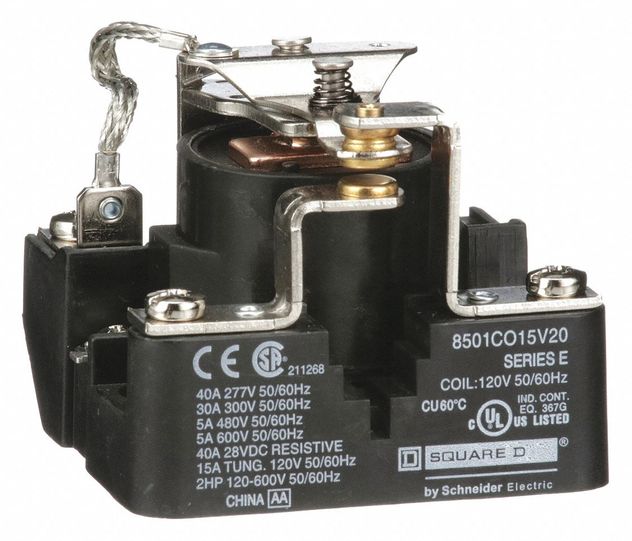

Square D 8501CO15V20
$36.27Unit

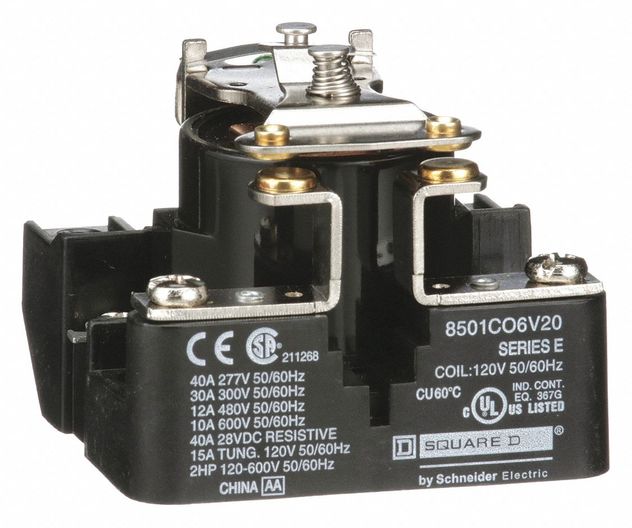

Square D 8501CO6V20
