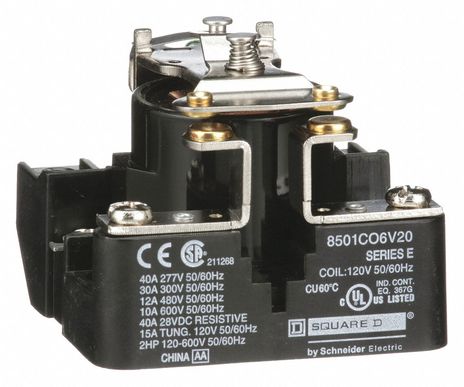

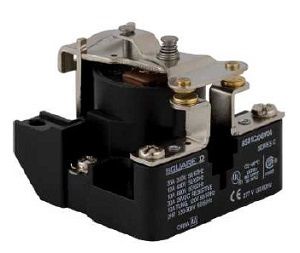

Square D 8501CO6V20

Name: Square D 8501CO6V20
Brand: Square D
SKU: CS1678179
Price: 35.80 USD
Availability: OutOfStock

SKU: CS1678179MPN: 8501CO6V20UPC/EAN: 785901052036

Power Relay, Harmony 8501C, SPST, coil, screw clamp terminal, 30A, 120V AC, 1NO

$35.80

Unit

Available on backorder

Quantity

remove

add

Product Details

RELAY 600VAC 10AMP TYPE C

In Rated Current	30 A
In Rated Current 1	30 A
Ambient Air Temperature For Operation	-22-122 °F
Ambient Air Temperature For Operation 1	-22-122 °F
Catalog Class	8501.0000
Connections Terminals	screw clamp terminal
Contacts Type And Composition	1 NO
Device Application	suited for controlling small single phase motors and other light loads
Device Short Name	type C
Hold In Power Consumption In Va	10-10 VA
Mounting Support	panel mounting
Network Number Of Phases	1 phase
Product Certifications	UL listed file E78351 CCN NLDX# #CSA# #CE
Product Or Component Type	power relay
Range Of Product	Power Relay 8501C
Rated Power In Hp	2 hp
Switch Function	SPST
Tightening Torque	11-15 lbf.in
Tightening Torque 1	11-15 lbf.in
