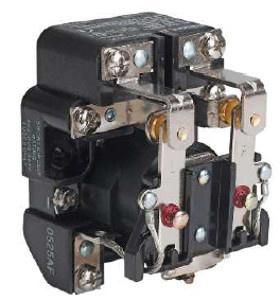

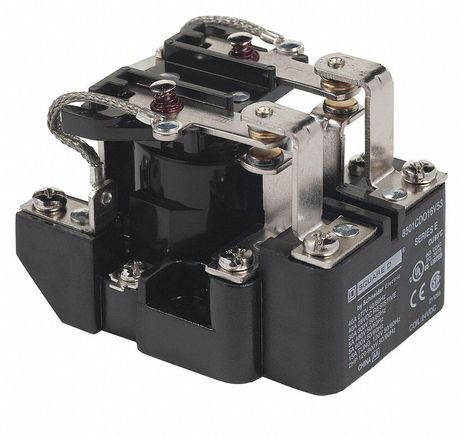

Square D 8501CO16V24
SKU: CS1678227MPN: 8501CO16V24UPC/EAN: 785901052159
Power Relay, Type C, 2 hp, 30A resistive at 300VAC, DPDT, 2 normally open and 2 normally closed contact, 240VAC coil
$59.82
UnitAvailable on backorder
Product Details
RELAY 600VAC 5AMP TYPE C +OPTIONS
Attributes
| In Rated Current | 30 A |
| In Rated Current 1 | 30 A |
| Ambient Air Temperature For Operation | -22-122 °F |
| Ambient Air Temperature For Operation 1 | -22-122 °F |
| Catalog Class | 8501.0000 |
| Connections Terminals | screw clamp terminal |
| Contacts Type And Composition | 2 NO/2 NC |
| Device Application | suited for controlling small single phase motors and other light loads |
| Device Short Name | type C |
| Hold In Power Consumption In Va | 10-10 VA |
| Mounting Support | panel mounting |
| Network Number Of Phases | 1 phase |
| Product Certifications | UL listed file E78351 CCN NLDX# #CSA# #CE |
| Product Or Component Type | power relay |
| Range Of Product | Power Relay 8501C |
| Rated Power In Hp | 2.0 hp |
| Switch Function | DPDT |
| Tightening Torque | 11-15 lbf.in |
| Tightening Torque 1 | 11-15 lbf.in |
Specifications
| SKU | CS1678227 |
|---|---|
| MPN | 8501CO16V24 |
| UPC/EAN | 785901052159 |
