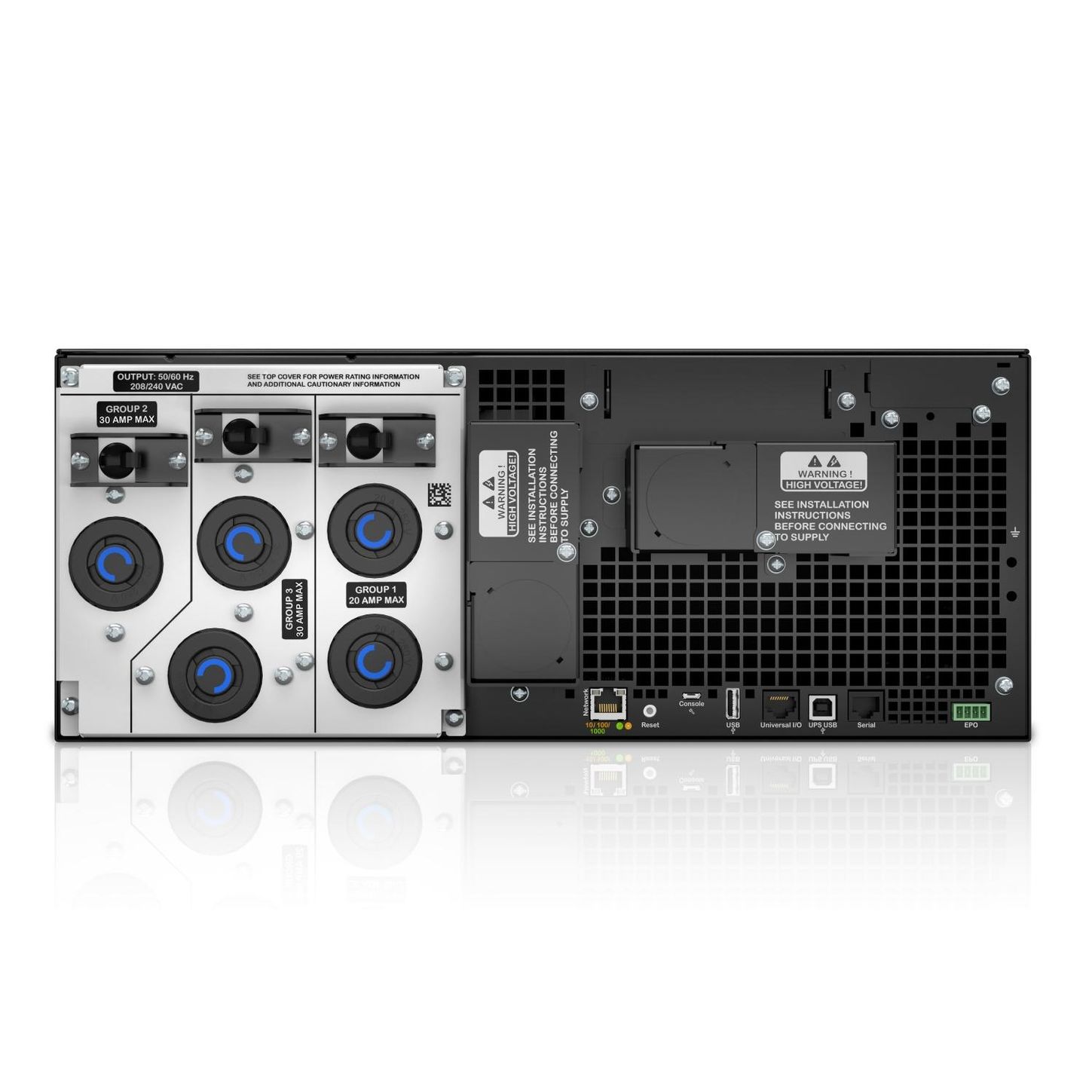

APC SRT6KRMXLT

Name: APC SRT6KRMXLT
Brand: APC
SKU: CS4805390
Availability: OutOfStock

SKU: CS4805390MPN: SRT6KRMXLTUPC/EAN: 731304308522

APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 208V, 2x L6-20R+3x L6-30R NEMA outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit

Product Details

APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 208V, 2x L6-20R+3x L6-30R NEMA outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit

Attributes

Sena Acoustic Level	55 dBA
Sena Additional Specification	high density
Sena Alarm	audible and visible alarms prioritized by severity
Sena Ambient Air Temperature For Operation	0-40 °C
Sena Ambient Air Temperature For Storage	-15-45 °C
Sena Battery Charger Power	579 W rated
Sena Battery Curve	D
Sena Battery Life	3-5 year(s)
Sena Battery Option	SRT192RMBP 1 2625 VAh SRT192RMBP 10 18375 VAh SRT192RMBP 2 4375 VAh SRT192RMBP 3 6125 VAh SRT192RMBP 4 7875 VAh SRT192RMBP 5 9625 VAh SRT192RMBP 6 11375 VAh SRT192RMBP 8 14875 VAh
Sena Battery Recharge Time	1.5 h
Sena Battery Type	lead-acid battery
Sena Battery Voltage	192 V
Sena Bypass Type	internal bypass (automatic and manual)
Sena Control Panel	multifunction LCD status and control console
Sena Crest Factor	0.126
Sena Curve Equation	efficiency
Sena Curve Fixed Loss	0.011900000274181
Sena Curve Load Maximum	1.0000
Sena Curve Load Minimum	0.019999999552965
Sena Curve Proportional Loss	0.020800000056624
Sena Curve Square Loss	0.026499999687076
Sena Curve Test Cond Id	Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 240V/60Hz electrical input and balanced resistive load (PF =
Sena Curve X Axis Maximum	1.0000
Sena Curve X Axis Title	load
Sena Curve X Axis Units	percentage
Sena Curve Y Axis Maximum	1.0000
Sena Curve Y Axis Minimum	0.5000
Sena Curve Y Axis Title	efficiency
Sena Curve Y Axis Units	percentage
Sena Emergency Power Off	yes
Sena Extended Runtime	1.0000
Sena Free Slots	1.0000
Sena Graph Display	1.0000
Sena Harmonic Distortion	less than 2 %
Sena Heat Dissipation	1402 Btu/h
Sena Input Voltage	208 V
Sena Input Voltage 1	208 V
Sena Input Voltage Limits	100…275 V adjustable (half load)
Sena Ip Degree Of Protection	IP20
Sena Maximum Configurable Power In Va	6000 VA
Sena Maximum Configurable Power In W	6000 W
Sena Mounting Location	front
Sena Mounting Mode	rack-mounted
Sena Mounting Position	horizontal
Sena Mounting Preference	lower
Sena Nb Of Power Socket Outlets	2 NEMA L6-20R 3 NEMA L6-30R
Sena Network Frequency	40…70 Hz auto-sensing
Sena Number Of Battery Replacement Quantity	1.0000
Sena Number Of Input Connectors	1 hard wire 3-wire (2P + E)
Sena Number Of Rack Unit	4U
Sena Number Of Tare Power	78 W
Sena Operating Altitude	0…10000 ft
Sena Output Connector Type	hard wire 3-wire (2P + E) 1
Sena Output Frequency	50/60 Hz ± 3 Hz sync to mains
Sena Output Voltage	208 V
Sena Output Voltage 1	208 V
Sena Product Certifications	ENERGY STAR V2.0 (USA)# #FCC part 15 class A# #NOM# #UL 1778
Sena Provided Equipment	CD with software documentation CD installation guide rack mounting brackets rack mounting hardware rack mounting support rails temperature probe USB cable warranty card web/SNMP management card
Sena Provided Equipment 1	CD with software documentation CD installation guide rack mounting brackets rack mounting hardware rack mounting support rails temperature probe USB cable warranty card web/SNMP management card
Sena Provided Equipment 2	CD with software documentation CD installation guide rack mounting brackets rack mounting hardware rack mounting support rails temperature probe USB cable warranty card web/SNMP management card
Sena Rated Power In Va	6000 VA
Sena Rated Power In W	6000 W
Sena Redundant	No
Sena Relative Humidity	0-95 % non-condensing
Sena Show Note Op Temperature	No
Sena Standards	CSA C22.2 No 107.3-05# #OSHPD
Sena Storage Altitude	0-50000 ft
Sena Storage Relative Humidity	0-95 % non-condensing
Sena Surge Energy Rate	480 J
Sena Ups Design Life	7 year(s)
Sena Ups Size	S
Sena Ups Type	double conversion online
Sena Usb Compatible	Yes
Sena Wave Type	sine wave
