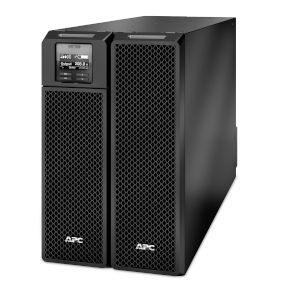

APC SRT10KRMXLT-10KTF

Name: APC SRT10KRMXLT-10KTF
Brand: APC
SKU: CS4805370
Availability: OutOfStock

SKU: CS4805370MPN: SRT10KRMXLT-10KTFUPC/EAN: 731304732891

APC Smart-UPS On-Line, 10kVA/10kW,Rackmount 10U, 208V, 2x L5-20R+4x L6-20R+2x L6-30R+2x L14-30R NEMA, NMC,W/ transformer 208V/240V to 120V,W/ rail kit

Documents

APC SRT012, SRT10KRMXLT, SRT10KRMXLT-10KTF, SRT10KRMXLT-5KTF2, SRT6KRMXLT-5KTF, SRT8KRMXLT, SRT8KXLT Manual

Product Details

APC Smart-UPS SRT 10kVA RM with 208/240V to 120V 10kVA Step-Down Transformer

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card

Attributes

Sena Acoustic Level	55 dBA
Sena Additional Specification	high density
Sena Alarm	audible and visible alarms prioritized by severity
Sena Ambient Air Temperature For Operation	0-40 °C
Sena Ambient Air Temperature For Storage	-15-45 °C
Sena Battery Charger Power	1191 W rated
Sena Battery Curve	D
Sena Battery Life	3-5 year(s)
Sena Battery Option	SRT192RMBP2 1 3598 VAh SRT192RMBP2 10 19789 VAh SRT192RMBP2 2 5397 VAh SRT192RMBP2 3 7196 VAh SRT192RMBP2 4 8995 VAh SRT192RMBP2 5 10794 VAh SRT192RMBP2 6 12593 VAh SRT192RMBP2 8 16191 VAh
Sena Battery Recharge Time	1.5 h
Sena Battery Type	lead-acid battery
Sena Battery Voltage	± 192 V (split battery referenced to neutral)
Sena Bypass Type	internal bypass (automatic and manual)
Sena Control Panel	multifunction LCD status and control console
Sena Crest Factor	0.126
Sena Curve Equation	efficiency
Sena Curve Fixed Loss	0.0098000001162291
Sena Curve Load Maximum	1.0000
Sena Curve Load Minimum	0.0099999997764826
Sena Curve Proportional Loss	0.018899999558926
Sena Curve Square Loss	0.024100000038743
Sena Curve Test Cond Id	Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 240V/60Hz electrical input and balanced resistive load (PF =
Sena Curve X Axis Maximum	1.0000
Sena Curve X Axis Title	load
Sena Curve X Axis Units	percentage
Sena Curve Y Axis Maximum	1.0000
Sena Curve Y Axis Minimum	0.5000
Sena Curve Y Axis Title	efficiency
Sena Curve Y Axis Units	percentage
Sena Emergency Power Off	yes
Sena Extended Runtime	1.0000
Sena Free Slots	1.0000
Sena Graph Display	1.0000
Sena Harmonic Distortion	less than 2 %
Sena Heat Dissipation	2490 Btu/h
Sena Input Voltage	208 V
Sena Input Voltage 1	208 V
Sena Input Voltage Limits	100…275 V adjustable (half load)
Sena Ip Degree Of Protection	IP20
Sena Maximum Configurable Power In Va	10000 VA
Sena Maximum Configurable Power In W	10000 W
Sena Mounting Location	front
Sena Mounting Mode	rack-mounted
Sena Mounting Position	horizontal
Sena Mounting Preference	lower
Sena Nb Of Power Socket Outlets	2 NEMA L14-30R 2 NEMA L5-20R 2 NEMA L6-30R 4 NEMA L6-20R
Sena Network Frequency	40…70 Hz auto-sensing
Sena Number Of Battery Replacement Quantity	2.0000
Sena Number Of Input Connectors	1 hard wire 3-wire (2P + E)
Sena Number Of Rack Unit	10U
Sena Number Of Tare Power	65 W
Sena Operating Altitude	0…10000 ft
Sena Output Connector Type	hard wire 3-wire (2P + E) 1 hard wire 4-wire (2P + N + E) 1
Sena Output Frequency	50/60 Hz ± 3 Hz sync to mains
Sena Output Voltage	120 V 208 V
Sena Output Voltage 1	120 V 208 V
Sena Product Certifications	ENERGY STAR V2.0 (USA)# #FCC part 15 class A# #UL 1778
Sena Provided Equipment	CD with software documentation CD installation guide rack mounting brackets rack mounting hardware rack mounting support rails temperature probe USB cable warranty card web/SNMP management card
Sena Provided Equipment 1	CD with software documentation CD installation guide rack mounting brackets rack mounting hardware rack mounting support rails temperature probe USB cable warranty card web/SNMP management card
Sena Provided Equipment 2	CD with software documentation CD installation guide rack mounting brackets rack mounting hardware rack mounting support rails temperature probe USB cable warranty card web/SNMP management card
Sena Rated Power In Va	10000 VA
Sena Rated Power In W	10000 W
Sena Redundant	No
Sena Relative Humidity	0-95 % non-condensing
Sena Show Note Op Temperature	No
Sena Standards	CSA C22.2 No 107.3-05
Sena Storage Altitude	0-50000 ft
Sena Storage Relative Humidity	0-95 % non-condensing
Sena Surge Energy Rate	480 J
Sena Ups Design Life	7 year(s)
Sena Ups Size	S
Sena Ups Type	double conversion online
Sena Usb Compatible	Yes
Sena Wave Type	sine wave
