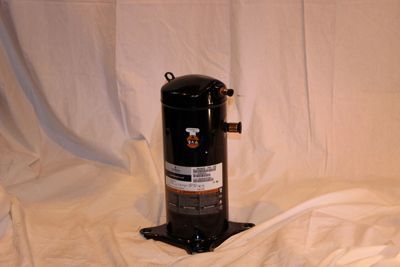

Carrier ZR44K5E-PFV-830

Name: Carrier ZR44K5E-PFV-830
Brand: Carrier
SKU: CS4231126
Price: 2584.98 USD
Availability: OutOfStock

SKU: CS4231126MPN: ZR44K5E-PFV-830Alternate Part #: CAR-ZR44K5E-PFV-830

Factory Authorized Parts™ - ZR44K5E-PFV-830 Copeland Scroll™ Compressor 44,000 BTUH

Carrier ZR32K5E PFV 830, ZR44K5E PFV 830, ZR48K5E PFV 830

$2,584.98

Unit

Available on backorder

Quantity

remove

add

Product Details

Factory Authorized Parts™ - ZR44K5E-PFV-830 is a Copeland Scroll™ Compressor that is Single phase with a voltage of 208/230 VAC. The compressor is designed to work in units that are compatible with a BTU Output of 44,000 and use R-22 refrigerant.

Attributes

Amps	22.5
Phase	Single
Voltage	208-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	42,200
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	3.56 in^3/Rev
Compressor Type	Scroll
Sound Level (dBA)	70
Compressor Housing	Hermetic
Liquid Temperature	85°F (29.44°C); 115°F (46.11°C)
Mass Flow (lbs/hr)	614 lbs./hr.; 696 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.17”
Rated Load Amps (RLA)	20.2
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	70°F
Suction Line Size (OD)	⅞”
Evaporating Temperature	50°F
Locked Rotor Amps (LRA)	137
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
