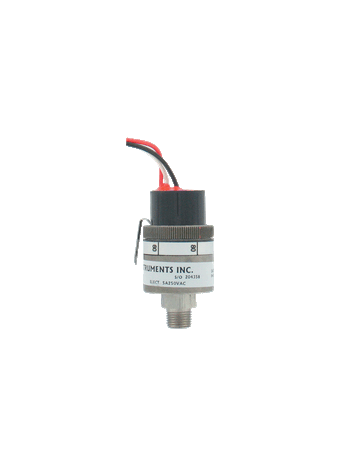

Dwyer AVS-150

Name: Dwyer AVS-150
Brand: Dwyer
SKU: CS4116047
Price: 233.41 USD
Availability: OutOfStock

SKU: CS4116047MPN: AVS-150Alternate Part #: 124174-00

AVS-150 VAC SW 2-28 IN HG 5 A

$233.41

Unit

Available on backorder

Quantity

remove

add

Product Details

Adjustable pressure switch, set point range 1.6-27.1” Hg (4.1-68.6 cm Hg) increasing, 2.7-28.2” Hg (6.9-71.6 cm Hg) decreasing, ±1.2” Hg (3.1 cm Hg) repeatability, 1.3-2.7” Hg (3.3-6.9 cm Hg) deadband.

Attributes

Commodity Code	R2AD
Compliance	UR.
Cycling	Not to exceed 20 CPM.
Electrical Connection	3-wire, 20 AWG insulated with PVC, 12” (30 cm) length.
Electrical Connections	3-wire, 20 AWG insulated with PVC, 12” (30 cm) length.
Electrical Rating	5 A @ 250 VAC, 3 A @ 28 VDC.
Electrical Ratings	5 A @ 250 VAC, 3 A @ 28 VDC.
Pressure Vacuum Limits	150% of range.
Process Connection	⅛” male NPT.
Sensor Element	Capsule.
Service	Compatible liquids or gases.
Set Point	Field adjustable.
Switch Type	SPDT snap action.
Wetted Material	Capsule: 17-7 PH SS; Fitting: 303 stainless steel.
