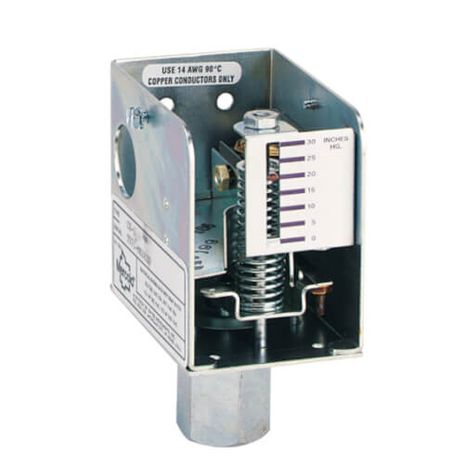

Dwyer CS-150
SKU: CS4116677MPN: CS-150Alternate Part #: 126582-04
CS-150 DIAPHRAGM PRESS SW
$449.09
UnitAvailable on backorder
Product Details
Low cost diaphragm pressure switch, adj. range 10-150 psig (.69-10.3 bar), deadband 5 psig (0.35 bar).
Attributes
| Commodity Code | 9000 |
| Conduit Connection | ½” hole for conduit hub. |
| Deadband | See Ordering page. |
| Electrical Connection | Screw terminal. |
| Electrical Rating | 15 A @ 120 VAC, 8 A @ 240 VAC. |
| Enclosure Rating | General purpose. |
| Mounting Orientation | Any position. |
| Pressure Limit | 30 psig (2.1 bar) for ranges 1, 3, and 10. 50 psig (3.5 bar) for range 30. 175 psig (12.1 bar) for range 150. |
| Process Connection | ¼” female NPT. |
| Set Point Adjustment | Internal screw. |
| Switch Type | SPDT snap switch. |
| Wetted Material | Nylon reinforced Buna-N and steel. |
Specifications
| SKU | CS4116677 |
|---|---|
| MPN | CS-150 |
| Alternate Part # | 126582-04 |
