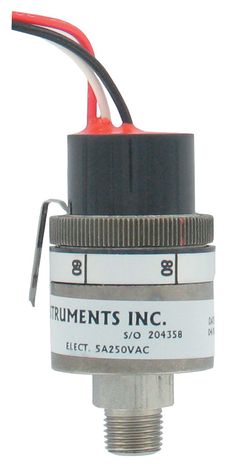

Dwyer APS-550
SKU: CS3028544MPN: APS-550Alternate Part #: 124175-04
APS-550 PR SW 15-550 PSI 5 A
$241.95
UnitAvailable on backorder
Product Details
Adjustable pressure switch, set point range 15.0-485 psi (1.0-33.4 bar) increasing, 20.0-500 psi (1.4-34.5 bar) decreasing, ±10.0 psi (.69 bar) repeatability, 5-22 psi (.35-1.5 bar) deadband.
Attributes
| Commodity Code | R2AD |
| Compliance | UR. |
| Cycling | Not to exceed 20 CPM. |
| Electrical Connection | 3-wire, 20 AWG insulated with PVC, 12” (30 cm) length. |
| Electrical Connections | 3-wire, 20 AWG insulated with PVC, 12” (30 cm) length. |
| Electrical Rating | 5 A @ 250 VAC, 3 A @ 28 VDC. |
| Electrical Ratings | 5 A @ 250 VAC, 3 A @ 28 VDC. |
| Pressure Vacuum Limits | 150% of range. |
| Process Connection | ⅛” male NPT. |
| Sensor Element | Capsule. |
| Service | Compatible liquids or gases. |
| Set Point | Field adjustable. |
| Switch Type | SPDT snap action. |
| Wetted Material | Capsule: 17-7 PH SS; Fitting: 303 stainless steel. |
Specifications
| SKU | CS3028544 |
|---|---|
| MPN | APS-550 |
| Alternate Part # | 124175-04 |
