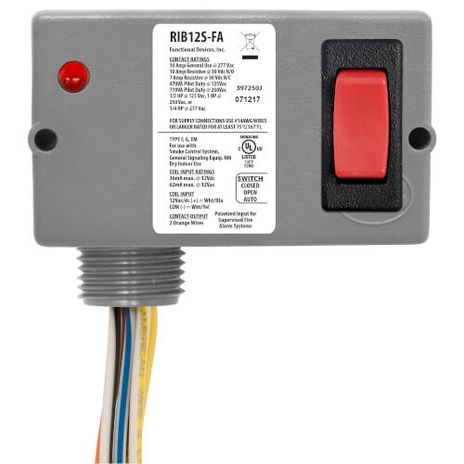

Functional Devices RIB12S-FA

Enclosed Relay 10A SPST 12Vac/dc + Overr

Enclosed Polarized/Alarm Relay 10 Amp SPST \& Override w/ 12 Vac/dc Coil

Specifications:

• # Relays \& Contact Type: One (1) SPDT Continuous Duty Coil
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Operate Time: 6ms
• Relay Status: LED On \= Activated
• Dimensions: 1.70” x 2.80” x 1.50” with .50” NPT nipple
• Wires: 16”, 600V Rated
• Approvals: UL Listed, UL916, UL864, C-UL, California State Fire Marshal, CE, RoHS
• Housing Rating: UL Accepted for Use in Plenum, NEMA 1
• Gold Flash: No
• Override Switch: Yes
