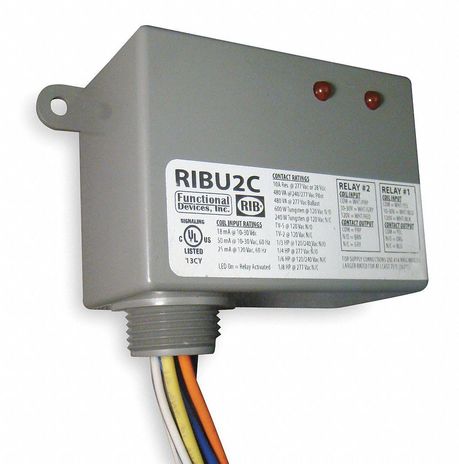

Functional Devices RIBU2C

Enclosed Relays 10Amp 2 SPDT 10-30Vac/dc

Specifications:

• # Relays \& Contact Type: Two (2) SPDT Continuous Duty Coil
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Operate Time: 20ms
• Relay Status: LED On \= Activated
• Dimensions: 2.30” x 3.20” x 1.80” with .75” NPT nipple
• Wires: 16”, 600V Rated
• Approvals: UL Listed, UL916, UL864, C-UL / California State Fire Marshal, CE, RoHS
• Housing Rating: UL Accepted for Use in Plenum, NEMA 1
• Gold Flash: Yes
• Override Switch: No
