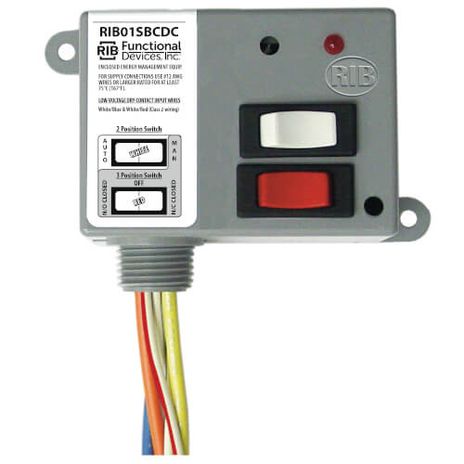

Functional Devices RIB01SBCDC

Enclosed Relay 20Amp SPDT 120Vac Class 2

Enclosed Dry Contact Input Relay - 20 Amp SPDT \& Override, Class 2 (120 VAC)

Specifications:

• # Relays \& Contact Type: One (1) SPDT Continuous Duty Coil
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Operate Time: 1.8 Seconds
• Relay Status: LED On \= Activated
• Dimensions: 2.30” x 3.20” x 1.80” with .50” NPT Nipple
• Wires: 16”, 600V Rated
• Approvals: UL Listed, UL916, UL864, C-UL, California State Fire Marshal, CE, RoHS
• Housing Rating: UL Accepted for Use in Plenum, NEMA 1
• Gold Flash: No
• Override Switch: Yes (2)
