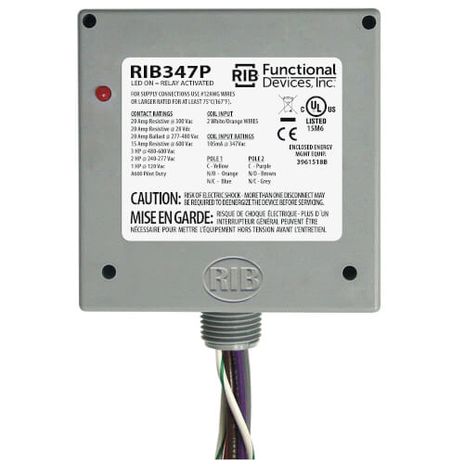

Functional Devices RIB347P

Enclosed Relay 20Amp DPDT 347Vac

Enclosed Relay 20 Amp DPDT with 347 Vac Coil

Specifications:

• # Relays \& Contact Type: One (1) DPDT Continuous Duty Coil
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Operate Time: 18ms
• Relay Status: LED On \= Activated
• Dimensions: 4.00” x 4.00” x 1.80” with .50” NPT Nipple
• Wires: 16”, 600V Rated
• Approvals: UL Listed, UL916, UL864, C-UL, California State Fire Marshal, CE, RoHS
• Housing Rating: UL Accepted for Use in Plenum, NEMA 1
• Gold Flash: Yes
• Override Switch: No
