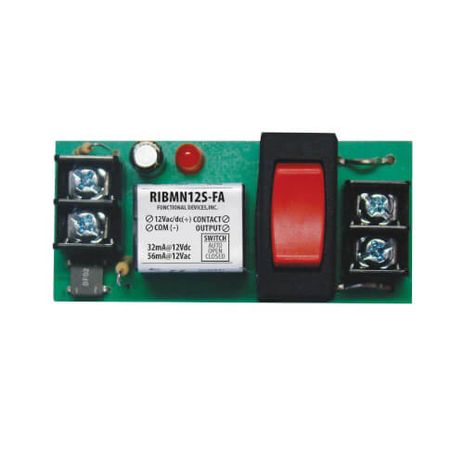

Functional Devices RIBMN12S-FA

Panel Relay 2.75in 15Amp SPST 12Vdc/12Va

2.75” Track Mount Pilot Relay 15 Amp SPST \& Override, Polarized w/ 12 VAC/DC Coil

Specifications

• Relays \& Contact Type: One (1) SPST Continuous Duty Coil
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Operate Time: 6ms
• Relay Status: LED On \= Activated
• Dimensions: 1.100” x 2.750” x 1.750”
• Track Mount: 2.750” MT212 Mounting Track Sold Separately
• Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS
• Gold Flash: No
• Override Switch: Yes
