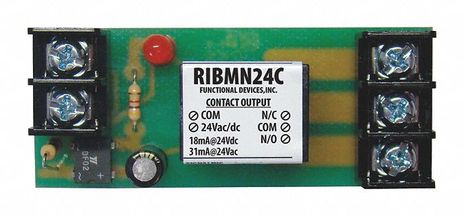

Functional Devices RIBMN24C

Panel Relay 2.75in 15Amp SPDT 24Vac/dc

2.75” Track Mount Pilot Relay 15 Amp SPDT w/ 24 VAC/DC Coil

Specifications

• Relays \& Contact Type: One (1) SPDT Continuous Duty Coil
• Expected Relay Life: 10 million cycles minimum mechanical
• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Operate Time: 6ms
• Relay Status: LED On \= Activated
• Dimensions: 1.100” x 2.750” x 0.750” (without track) 1.100” x 2.750” x 1.250” (including track)
• Track Mount: 2.750” MT212 Mounting Track Sold Separately
• Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS
• Gold Flash: No
• Override Switch: No
