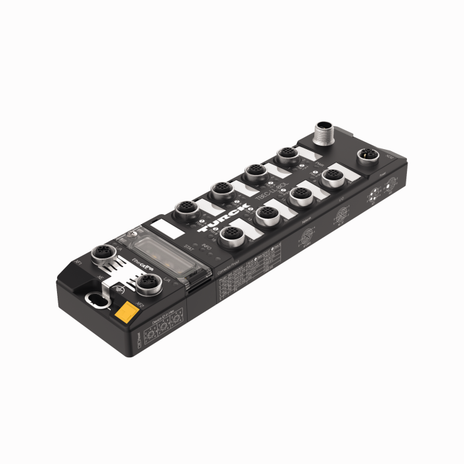

Turck TBEN-LL-4RFID-8DXP

100002463 - TBEN-L

Compact Multiprotocol RFID Module for Ethernet

4 RFID Channels (HF/UHF) and 8 Universal Digital Channels, Configurable as PNP Inputs or 2-A Outputs

• PROFINET device, EtherNet/IP device or Modbus TCP slave
• PROFINET S2 system redundancy
• Integrated Ethernet switch
• Supports 10 Mbps/100 Mbps

• Glass fiber reinforced housing
• Shock and vibration tested
• Fully potted module electronics
• Protection classes IP65, IP67, IP69K

• M12, L-coded connector for power supply

• ATEX Zone 2/22

• Up to 128 bytes of user data (EtherNet/IP: up to 80 bytes) per read/write cycle per channel and use of fragments with 16 kilobytes of FIFO memory each
• Data interface for convenient use of the RFID functions
• Continuous HF bus mode with up to 32 HF read/write heads per channel
• 4 channels with M12 connection for RFID
• 8 universal digital channels, configurable as PNP inputs or 2 A outputs

• Programmable ARGEE
