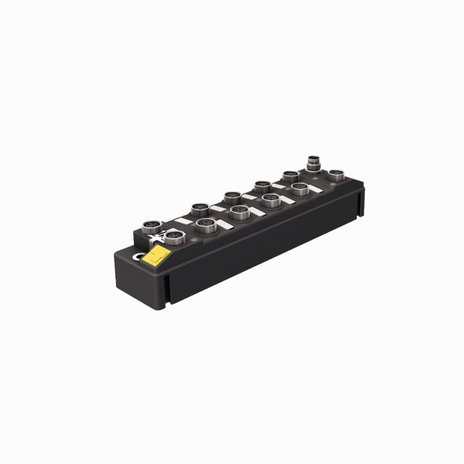

Turck TBEN-S1-8DXP
SKU: CS5505331MPN: TBEN-S1-8DXPAlternate Part #: 6814023UPC/EAN: 4047101299946
6814023 - MULTIPROTOCOL ETHERNET
$412.00
UnitAvailable on backorder
Product Details
Compact Multiprotocol I/O Module for Ethernet
8 Universal Digital Channels, Configurable as PNP Inputs or 2 A Outputs
- PROFINET device, EtherNet/IP device or Modbus TCP slave
- Integrated Ethernet switch
- Supports 10 Mbps / 100 Mbps
- 2x M8, 4-pin, Ethernet fieldbus connection
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- 4-pin M8 male connector for power supply
- Galvanically isolated voltage groups
- ATEX Zone 2/22
- Input diagnostics per group
- Max. 2 A per output
- Output diagnostics per channel
- One freely selectable digital channel per port
- Programmable ARGEE
Attributes
| Ambient Temperature | -40…+70 °C |
| Approvals | ATEX Zone 2/22, cULus |
| Connection Technology Signal | M8 |
| Customs Tariff Number | 85176200000.0000 |
| Device Type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Ecl Ss Code V5 1 4 | 27250302 -/- Digital I/O module (periphery) |
| Fieldbus Connection Technology | 2 × M8, 4-pin |
| Fieldbus Protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Fieldbus Transmission Rate | 10/100 Mbps |
| Protection Class | IP65/IP67/IP69K |
| Signal Type | Digital input, Digital input/output, Digital output |
Specifications
| SKU | CS5505331 |
|---|---|
| MPN | TBEN-S1-8DXP |
| Alternate Part # | 6814023 |
| UPC/EAN | 4047101299946 |
