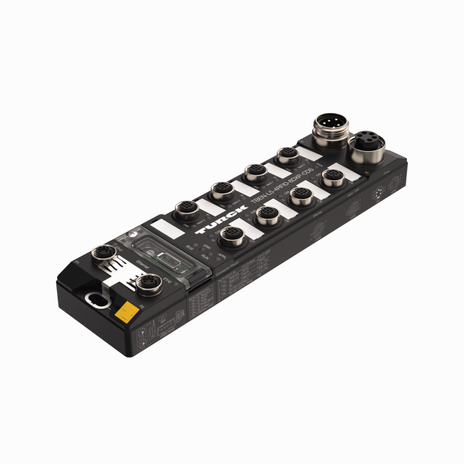

Turck TBEN-L5-4RFID-8DXP-CDS

6814120 - TBEN-L

Compact Multiprotocol RFID Module for Ethernet

interface for 4 BL ident read-write heads (HF/UHF)

• CODESYS V3 PLC Runtime
• CODESYS OPC-UA server
• PROFINET device, EtherNet/IP device or Modbus TCP master/slave
• Integrated Ethernet switch
• Supports 10 Mbps/100 Mbps

• Glass fiber reinforced housing
• Shock and vibration tested
• Fully potted module electronics
• Protection classes IP65, IP67, IP69K

• ATEX Zone 2/22

• Integration in PLC systems without the use of a special function module
• Up to 128 bytes of user data per read/write cycle per channel and use of fragments with 16 kilobytes of FIFO memory each
• Data interface for convenient use of the RFID functions
• 4 channels with M12 connection for RFID
• 8 universal digital channels, configurable as PNP inputs or 2 A outputs
