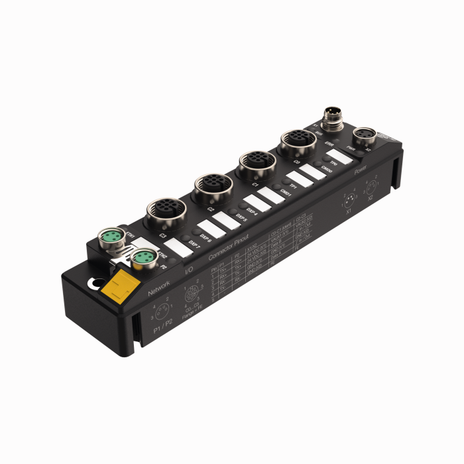

Turck TBEN-S2-2RFID-4DXP

6814029 - TBEN-S

Compact Multiprotocol RFID Module for Ethernet

interface for 2 BL ident read-write heads (HF/UHF)

• PROFINET device, EtherNet/IP device or Modbus TCP slave
• PROFINET S2 system redundancy
• Integrated Ethernet switch
• Supports 10 Mbps/100 Mbps

• Glass fiber reinforced housing
• Shock and vibration tested
• Fully potted module electronics
• Protection classes IP65, IP67, IP69K

• ATEX Zone 2/22

• Up to 128 bytes of user data per read/write cycle per channel and use of fragments with 16 kilobytes of FIFO memory each
• Data interface for convenient use of the RFID functions
• Continuous HF bus mode with up to 32 HF read/write heads per channel
• 2 channels with M12 connection for RFID
• 4 universal digital channels, configurable as PNP inputs or 0.5 A outputs

• Programmable ARGEE
