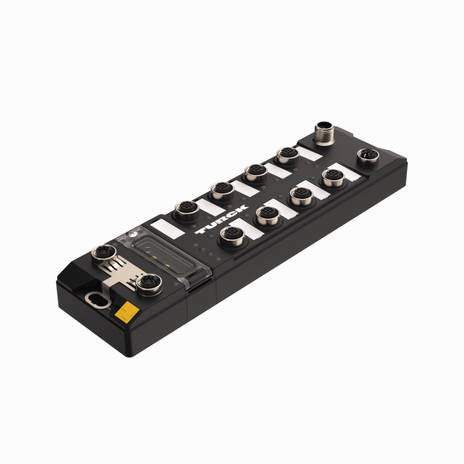

Turck TBEN-LL-16DXP
SKU: CS3877233MPN: TBEN-LL-16DXPAlternate Part #: 100004252UPC/EAN: 4047101496789
100004252 - NO DESC
$877.67
UnitAvailable on backorder
Product Details
Compact multiprotocol I/O module for Ethernet
16 Universal Digital Channels, Configurable as PNP Inputs or 2A Outputs
- PROFINET device, EtherNet/IP device or Modbus TCP slave
- Integrated Ethernet switch
- Supports 10 Mbps/100 Mbps
- 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
- PROFINET S2 system redundancy
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- M12, 5-pin, L-coded male connector for power supply
- Galvanically isolated voltage groups support passive safety
- Input diagnostics per port
- Max. 2 A per output
- Output diagnostics per channel
- Two freely selectable digital channels per port
- Programmable ARGEE
Attributes
| Ambient Temperature | -40…+70 °C |
| Approvals | cULus |
| Connection Technology Signal | M12 |
| Customs Tariff Number | 85176200000.0000 |
| Device Type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Ecl Ss Code V5 1 4 | 27250302 -/- Digital I/O module (periphery) |
| Fieldbus Connection Technology | 2 x M12, 4-pin, D-coded |
| Fieldbus Protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Fieldbus Transmission Rate | 10/100 Mbps |
| Protection Class | IP65/IP67/IP69K |
| Signal Type | Digital input, Digital input/output, Digital output |
Specifications
| SKU | CS3877233 |
|---|---|
| MPN | TBEN-LL-16DXP |
| Alternate Part # | 100004252 |
| UPC/EAN | 4047101496789 |
