Turck RI360P1-DSU35TC-ELI-EXI
SKU: CS3832860MPN: RI360P1-DSU35TC-ELI-EXIAlternate Part #: 1593015UPC/EAN: 4047101328783
1593015 - SINGLETURN
$619.76
UnitAvailable on backorder
Product Details
Inductive Angle Sensor
With Analog Output
Premium Line
- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Detecting angular positions of 0° to 360°
- P1-Ri-DSU35 positioning element included in delivery
- Measuring range programmable via switch in the Terminal chamber
- Immune to electromagnetic interference
- Resolution, 12-bit
- 2‐wire, 14…30 VDC
- Analog output
- 4 … 20 mA
- Terminal chamber
- ATEX category II 2 G, Ex Zone 1
- ATEX category II 2 D, Ex Zone 21
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 2 G, ATEX II 3 G, ATEX II 2 D, ATEX II 3 D |

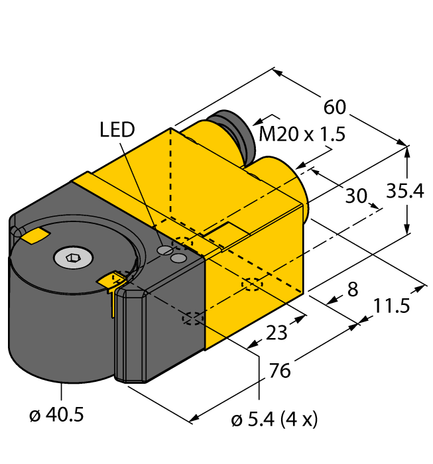

| Construction Size | 76 x 60 x 35.4 mm |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90318080000.0000 |
| Ecl Ss Code V5 1 4 | 27270501 -/- Encoder, absolute |
| Electrical Connection | Terminal chamber |
| Encoder Line | Premium-Line |
| Flange Type | Flange without mounting element |
| Housing Material | Plastic, PP-GF30 |
| Measuring Range | 0…360° |
| Operating Voltage | 14…30 VDC |
| Output Function | Analog output |
| Output Type | Absolute singleturn |
| Protection Class | IP68/IP69K |
| Technology | Contactless |
Specifications
| SKU | CS3832860 |
|---|---|
| MPN | RI360P1-DSU35TC-ELI-EXI |
| Alternate Part # | 1593015 |
| UPC/EAN | 4047101328783 |
