Turck

Turck NI20R-S32SR-VP44X

SKU: CS3814074MPN: NI20R-S32SR-VP44XAlternate Part #: 1440001UPC/EAN: 4047101069273

1440001 - FERRITE, RING, DC, TERMINAL

Turck NI20R-S32SR-VP44X
$2,259.46
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

Ring Sensor

  • Rectangular, height 32 mm
  • Plastic, ABS
  • Static output behavior
  • Sensitivity adjusted via potentiometer
  • Modular design, ring probe and switching amplifier also separately mountable
  • Output pulse length min. 100 ms
  • DC 4-wire, 10…55 VDC
  • Changeover contact, PNP output
  • Terminal chamber

Attributes

Ambient Temperature -25…+70 °C

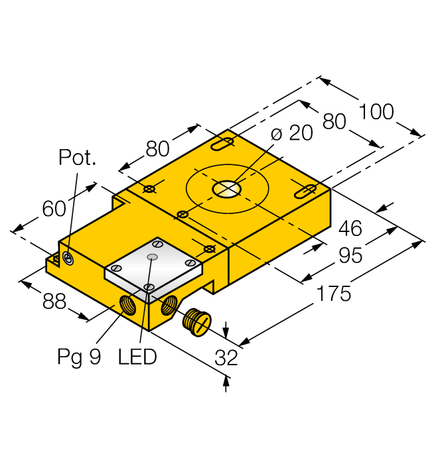

Construction Size 175 x 100 x 32 mm, S32SR
Customs Tariff Number 85365080900.0000
Design Ring sensor
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Terminal chamber
Housing Material Plastic, ABS
Inside Ring Diameter D 20 mm
Operating Voltage 10…55 VDC
Output Function Complementary contact, PNP
Protection Class IP65
Special Feature Ring sensor, static output
Switching Frequency 0.0080 kHz

Specifications

SKUCS3814074
MPNNI20R-S32SR-VP44X
Alternate Part #1440001
UPC/EAN4047101069273
