Turck BIM-NST-Y1X-H1141

SKU: CS3790063MPN: BIM-NST-Y1X-H1141Alternate Part #: 1058600UPC/EAN: 4047101064308

1058600 - TRANS., RECT., NAMUR, CON. M12

Turck BIM-IKT-AD4X-H1141 W/KLI3, BIM-IKT-AN6X-H1141 W/KLI3, BIM-IKT-AP6X-H1141 W/KLI-3, BIM-IKT-AP6X-H1141/S363, BIM-IKT-AP6X-V1131 W/KLI3, BIM-IKT-Y1X-H1141 W/KLI2, BIM-IKT-Y1X-H1141 W/KLI3, BIM-NST-AN6X-H1141, BIM-NST-AP6X-0.2-RS4T W/O BKT, BIM-NST-AP6X-H1141, BIM-NST-AP6X-H1141/S34, BIM-NST-AP6X-V1131, BIM-NST-RP6X-0.2-RS4T W/O BKT, BIM-NST-Y1X-H1141
Turck BIM-NST-AN6X-H1141, BIM-NST-AP6X-H1141, BIM-NST-Y1X-H1141
Turck BIM-IKT-AD4X-H1141 W/KLI3, BIM-IKT-AN6X-H1141 W/KLI3, BIM-IKT-AP6X-H1141 W/KLI-3, BIM-IKT-AP6X-H1141/S363, BIM-IKT-AP6X-V1131 W/KLI3, BIM-IKT-Y1X-H1141 W/KLI2, BIM-IKT-Y1X-H1141 W/KLI3, BIM-NST-AN6X-H1141, BIM-NST-AP6X-0.2-RS4T W/O BKT, BIM-NST-AP6X-H1141, BIM-NST-AP6X-H1141/S34, BIM-NST-AP6X-V1131, BIM-NST-RP6X-0.2-RS4T W/O BKT, BIM-NST-Y1X-H1141
Turck BIM-NST-AN6X-H1141, BIM-NST-AP6X-H1141, BIM-NST-Y1X-H1141
$131.40
Unit
Available on backorder
remove
add

Product Details

Magnetic Field Sensor

For Pneumatic Cylinders

  • Plastic, PA12-GF30
  • Magnetic-inductive sensor
  • DC 2-wire, nom. 8.2 VDC
  • Output acc. to DIN EN 60947-5-6 (NAMUR)
  • Male connector M12 x 1
  • ATEX category II 2 G, Ex Zone 1
  • ATEX category II 1 D, Ex Zone 20
  • SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0
  • SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1

Attributes

Ambient Temperature -25…+70 °C
Approvals ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc

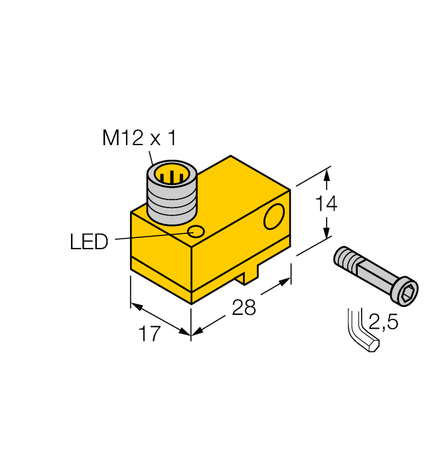

Construction Size 28 x 17 x 14 mm, NST
Customs Tariff Number 85365019900.0000
Cylindrical Design T-groove cylinder, Dovetail groove cylinder, Profile cylinder
Design Rectangular
Ecl Ss Code V5 1 4 27270104 -/- Magnetic inductive proximity switch
Electrical Connection Connector, M12 × 1
Housing Material Plastic, PA12-GF30
Output Function NAMUR
Protection Class IP67

Specifications

SKUCS3790063
MPNBIM-NST-Y1X-H1141
Alternate Part #1058600
UPC/EAN4047101064308
