Turck BI15-Q20-ADZ32X2-B3131

SKU: CS3788223MPN: BI15-Q20-ADZ32X2-B3131Alternate Part #: 4256251UPC/EAN: 4047101093926

4256251 - FERRITE, RECT., AC, CON. ½IN

Turck BI15-Q20-ADZ32X2-B3131
$190.42
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Rectangular, height 20 mm
  • Active face on top
  • Plastic, PBT-GF30-V0
  • AC 2-wire, 20…250 VAC
  • DC 2-wire, 10…300 VDC
  • NO contact
  • ½” male connector

Attributes

Ambient Temperature -25…+70 °C

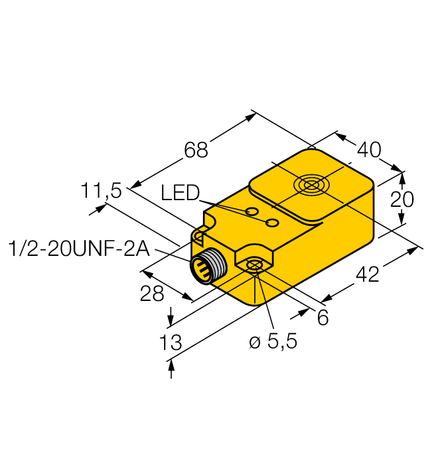

Construction Size 68 x 40 x 20 mm, Q20
Customs Tariff Number 85365080900.0000
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, ½″
Housing Material Plastic, PBT-GF30-V0
Mounting Flush
Operating Voltage 20…250 VAC / 10…300 VDC
Output Function NO contact, 2-wire
Protection Class IP67
Rated Switching Distance 15 mm
Switching Frequency 0.020 kHz

Specifications

SKUCS3788223
MPNBI15-Q20-ADZ32X2-B3131
Alternate Part #4256251
UPC/EAN4047101093926
