Turck BI15-CP40-FZ3X2-B3141
SKU: CS684761MPN: BI15-CP40-FZ3X2-B3141Alternate Part #: 1341090
1341090 - FERRITE, RECT., AC, CON. ½IN
$298.39
UnitAvailable on backorder
Product Details
Inductive Sensor
- Rectangular, height 40 mm
- Variable orientation of active face in 9 directions
- Plastic, PBT-GF30-VO
- High-luminance corner LEDs
- Optimum view of operating voltage and switching state from any position
- AC 2-wire, 20…250 VAC
- DC 2-wire, 10…300 VDC
- NO contact
- ½” male connector
Attributes
| Ambient Temperature | -25…+70 °C |

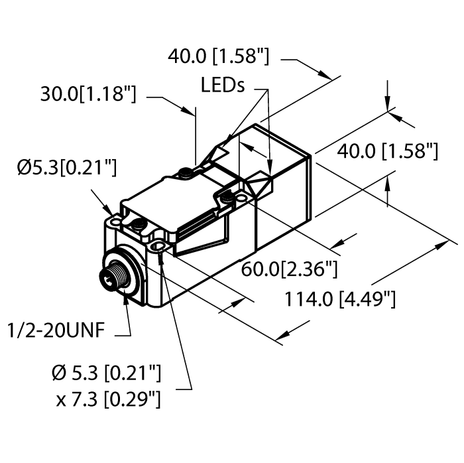

| Construction Size | 114 x 40 x 40 mm, CP40 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, ½″ |
| Housing Material | Plastic, PBT-GF30-V0, Black |
| Mounting | Flush |
| Operating Voltage | 20…250 VAC / 10…300 VDC |
| Output Function | Connection programmable, 2-wire |
| Protection Class | IP67 |
| Rated Switching Distance | 15 mm |
| Switching Frequency | 0.020 kHz |
Specifications
| SKU | CS684761 |
|---|---|
| MPN | BI15-CP40-FZ3X2-B3141 |
| Alternate Part # | 1341090 |
