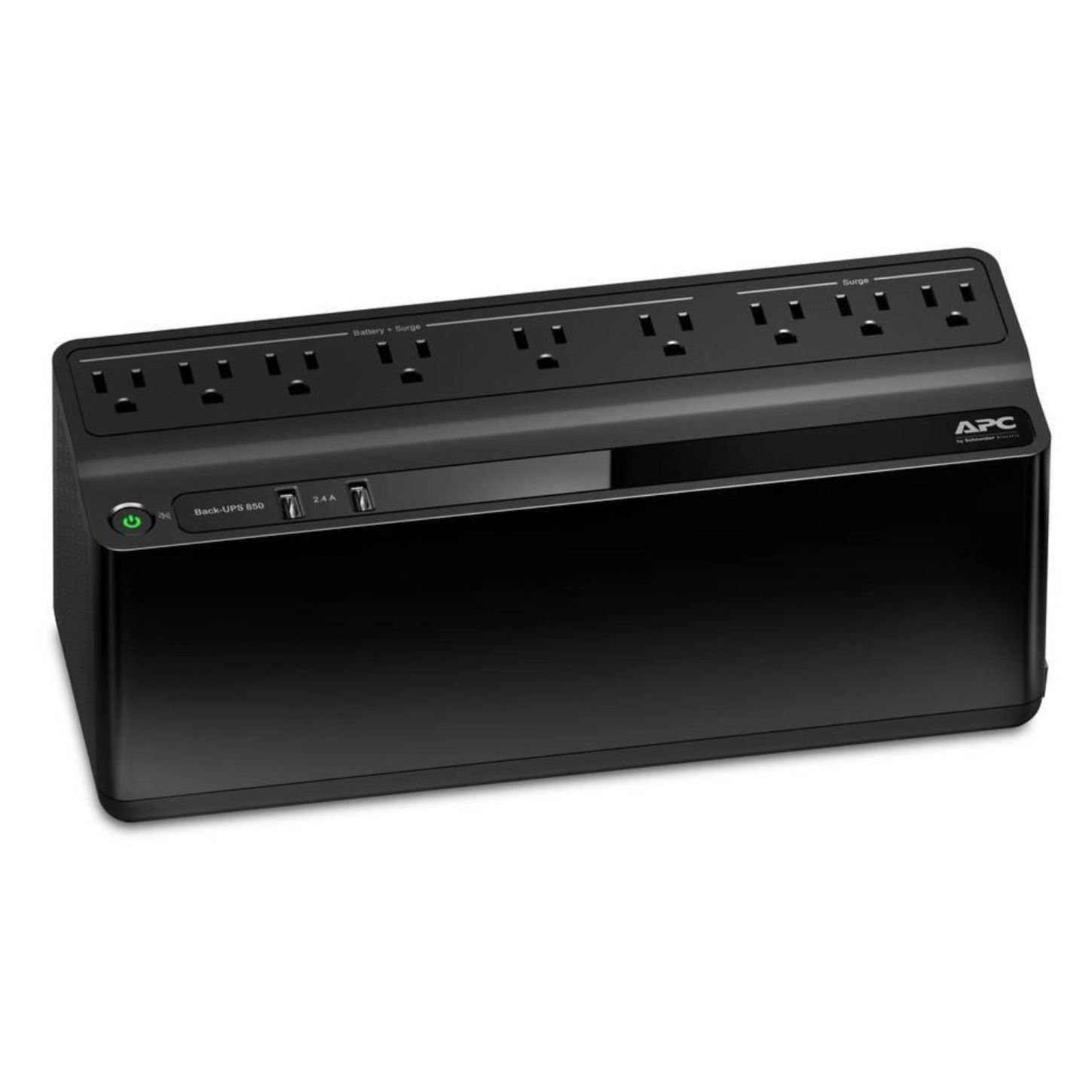

APC BE850G2

Name: APC BE850G2
Brand: APC
SKU: CS3753220
Availability: OutOfStock

SKU: CS3753220MPN: BE850G2UPC/EAN: 731304413592

APC Back-UPS 850VA, 120V, 2 USB charging ports, 9 NEMA outlets (3 surge)

Product Details

Back-UPS 850VA, 2 USB charging ports- Output power capacity : 450Watts / 850VA - Max Configurable Power (Watts) : 450Watts / 850VA - Nominal Output Voltage : 120V - Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz - Nominal Input Voltage : 120V - Input frequency : 50/60 Hz +/- 3 Hz (auto sensing) - Input Connections : NEMA 5-15P - Cord Length : 5ft (1.52meters) - Input voltage range for main operations : 92 - 139V

Attributes

Sena Acoustic Level	45 dBA
Sena Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Sena Ambient Air Temperature For Operation	0-40 °C
Sena Ambient Air Temperature For Storage	-15-45 °C
Sena Battery Charger Power	13 W rated
Sena Battery Curve	B
Sena Battery Graph Comments	This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
Sena Battery Life	2-5 year(s)
Sena Battery Recharge Time	8 h
Sena Battery Type	lead-acid battery
Sena Control Panel	LED status display with on line : on battery : replace battery and building wiring fault
Sena Curve Equation	efficiency
Sena Curve Fixed Loss	0.0065000001341105
Sena Curve Load Maximum	1.0000
Sena Curve Load Minimum	0.0099999997764826
Sena Curve Square Loss	0.0060000000521541
Sena Curve Test Cond Id	Curve fit of data measured in accordance with the US DOE Test Procedure for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.
Sena Curve X Axis Maximum	1.0000
Sena Curve X Axis Title	load
Sena Curve X Axis Units	percentage
Sena Curve Y Axis Maximum	1.0000
Sena Curve Y Axis Minimum	0.5000
Sena Curve Y Axis Title	efficiency
Sena Curve Y Axis Units	percentage
Sena Equipment Protection Policy	lifetime : $75000
Sena Graph Display	1.0000
Sena Input Voltage	120 V
Sena Input Voltage 1	120 V
Sena Input Voltage Limits	92…139 V
Sena Maximum Configurable Power In Va	850 VA
Sena Maximum Configurable Power In W	450 W
Sena Mounting Mode	not rack-mountable
Sena Mounting Preference	no preference
Sena Nb Of Power Socket Outlets	3 NEMA 5-15R surge 6 NEMA 5-15R
Sena Network Frequency	50/60 Hz ± 3 Hz auto-sensing
Sena Number Of Cables	1.0000
Sena Number Of Tare Power	7 W
Sena Operating Altitude	0…10000 ft
Sena Output Frequency	50/60 Hz ± 3 Hz sync to mains
Sena Output Voltage	120 V
Sena Output Voltage 1	120 V
Sena Plug Standard	NEMA 5-15P
Sena Product Certifications	California Energy Commission (CEC)# #cTUVus
Sena Provided Equipment	USB cable user manual
Sena Provided Equipment 1	USB cable user manual
Sena Provided Equipment 2	USB cable user manual
Sena Rated Power In Va	850 VA
Sena Rated Power In W	450 W
Sena Redundant	No
Sena Relative Humidity	0-95 %
Sena Show Note Op Temperature	No
Sena Standards	CSA C22.2 No 107.3# #FCC part 15 class B# #UL 1778
Sena Storage Altitude	0-50000 ft
Sena Storage Relative Humidity	10-90 %
Sena Surge Energy Rate	354 J
Sena Transfer Time	6 ms typical : 10 ms maximum
Sena Ups Size	WS
Sena Ups Type	standby
Sena Usb Compatible	No
Sena Wave Type	stepped approximation to a sinewave
