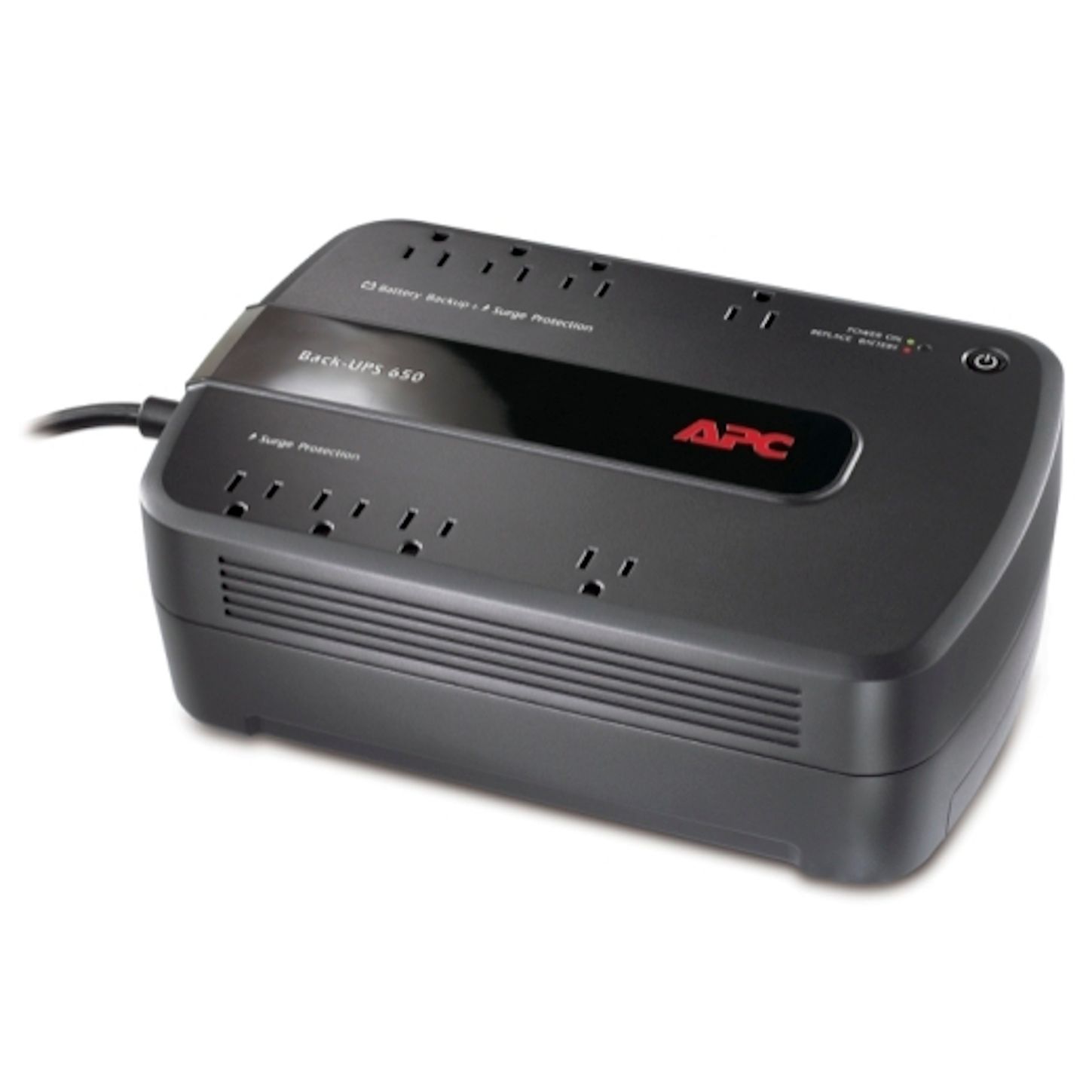

APC BE650G1

Name: APC BE650G1
Brand: APC
SKU: CS3182769
Availability: OutOfStock

SKU: CS3182769MPN: BE650G1Alternate Part #: APC-BE650G1UPC/EAN: 731304285434

APC Back-UPS 650VA, 120V, 8 NEMA outlets (4 surge)

Documents

APC Manual

Product Details

APC Back-UPS 650

Max Configurable Power (Watts) : 390 Watts / 650VA
Output Frequency (sync to mains) : 60 Hz +/- 3 Hz Sync to mains
Topology : Standby
Waveform type : Stepped approximation to a sinewave
Maximum Output Current : 12
Transfer Time : 8 ms typical : 12 ms maximum
Input frequency : 60 Hz +/- 3 Hz
Input voltage range for main operations : 90 - 140V
Number of Power Cords : 1
Battery type : Lead-acid battery
Typical recharge time : 24hour(s)
Replacement Battery : BX750MI-FR
RBC Quantity : 1
Battery Charge Power (Watts) : 3 Watts
Battery Volt-Amp-Hour Capacity : 79

Attributes

Sena Acoustic Level	45 dBA
Sena Alarm	alarm when on battery : distinctive low battery alarm
Sena Ambient Air Temperature For Operation	0-40 °C
Sena Ambient Air Temperature For Storage	-15-45 °C
Sena Battery Capacity	9.0 Ah
Sena Battery Charger Power	3 W rated
Sena Battery Curve	C
Sena Battery Graph Comments	This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
Sena Battery Life	2-5 year(s)
Sena Battery Recharge Time	24 h
Sena Battery Type	lead-acid battery
Sena Battery Voltage	12 V
Sena Control Panel	LED status display with on line : on battery : replace battery and building wiring fault
Sena Curve Equation	efficiency
Sena Curve Fixed Loss	0.0052999998442829
Sena Curve Load Maximum	1.0000
Sena Curve Load Minimum	0.0099999997764826
Sena Curve Square Loss	0.003400000045076
Sena Curve Test Cond Id	Curve fit of data measured in accordance with the US DOE Test Procedure for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.
Sena Curve X Axis Maximum	1.0000
Sena Curve X Axis Title	load
Sena Curve X Axis Units	percentage
Sena Curve Y Axis Maximum	1.0000
Sena Curve Y Axis Minimum	0.5000
Sena Curve Y Axis Title	efficiency
Sena Curve Y Axis Units	percentage
Sena Data Line Protection	RJ45 10/100 Base-T Ethernet protection
Sena Equipment Protection Policy	lifetime : $75000
Sena Graph Display	1.0000
Sena Input Voltage	120 V
Sena Input Voltage 1	120 V
Sena Input Voltage Limits	90…140 V
Sena Let Through Voltage Rating	330 V
Sena Max Runtime	62 min
Sena Maximum Configurable Power In Va	650 VA
Sena Maximum Configurable Power In W	390 W
Sena Mounting Mode	not rack-mountable
Sena Mounting Preference	no preference
Sena Nb Of Power Socket Outlets	4 NEMA 5-15R 4 NEMA 5-15R surge
Sena Network Frequency	60 Hz ± 3 Hz
Sena Noise Suppression	full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Sena Number Of Battery Replacement Quantity	1.0000
Sena Number Of Cables	1.0000
Sena Number Of Tare Power	3 W
Sena Operating Altitude	0…10000 ft
Sena Output Frequency	60 Hz ± 3 Hz sync to mains
Sena Output Voltage	120 V
Sena Output Voltage 1	120 V
Sena Performance Multiplier	1.0000
Sena Plug Standard	NEMA 5-15P
Sena Product Certifications	California Energy Commission (CEC)# #ENERGY STAR V2.0 (USA)# #NOM# #TÜV-C
Sena Provided Equipment	USB cable user manual
Sena Provided Equipment 1	USB cable user manual
Sena Provided Equipment 2	USB cable user manual
Sena Rated Power In Va	650 VA
Sena Rated Power In W	390 W
Sena Redundant	No
Sena Relative Humidity	5-95 %
Sena Show Note Op Temperature	No
Sena Standards	CSA C22.2 No 107.1# #FCC part 15 class B# #FCC part 68# #UL 1778
Sena Storage Altitude	0-50000 ft
Sena Storage Relative Humidity	5-95 %
Sena Surge Energy Rate	340 J
Sena Transfer Time	8 ms typical : 12 ms maximum
Sena Ups Size	WS
Sena Ups Type	standby
Sena Usb Compatible	Yes
Sena Value Multiplier	1.0000
Sena Wave Type	stepped approximation to a sinewave
