APC BK500BLK

Name: APC BK500BLK
Brand: APC
SKU: CS534565
Availability: OutOfStock

SKU: CS534565MPN: BK500BLKUPC/EAN: 731304021360

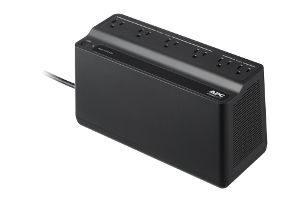

APC Back-UPS, 500VA, Tower, 120V, 6 NEMA 5-15R Outlets , User Replaceable Battery

Documents

APC APC, BK500BLK Manual

Product Details

APC Back-UPS 500 (black)

APC Back-UPS,300 Watts /500 VA,Input 120V /Output 120V, Interface Port DB-9 RS-232, USB

Includes: CD with software, Cord management straps, USB cable, User Manual

Attributes

Sena Acoustic Level	45 dBA
Sena Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Sena Ambient Air Temperature For Operation	0-40 °C
Sena Ambient Air Temperature For Storage	-15-45 °C
Sena Battery Charger Power	13 W rated
Sena Battery Curve	B
Sena Battery Graph Comments	This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
Sena Battery Life	4-6 year(s)
Sena Battery Recharge Time	8 h
Sena Battery Type	lead-acid battery
Sena Control Panel	LED status display with on line : on battery : replace battery and overload indicators
Sena Curve Equation	efficiency
Sena Curve Fixed Loss	0.0063000000081956
Sena Curve Load Maximum	1.0000
Sena Curve Load Minimum	0.0099999997764826
Sena Curve Square Loss	0.0026000000070781
Sena Curve Test Cond Id	Curve fit of data measured in accordance with the US DOE Test Procedure for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.
Sena Curve X Axis Maximum	1.0000
Sena Curve X Axis Title	load
Sena Curve X Axis Units	percentage
Sena Curve Y Axis Maximum	1.0000
Sena Curve Y Axis Minimum	0.5000
Sena Curve Y Axis Title	efficiency
Sena Curve Y Axis Units	percentage
Sena Data Line Protection	RJ11 analog phone line for phone/fax/modem/DSL
Sena Equipment Protection Policy	lifetime : $25000
Sena Graph Display	1.0000
Sena Heat Dissipation	24 Btu/h
Sena Input Voltage	120 V
Sena Input Voltage 1	120 V
Sena Input Voltage Limits	98…140 V
Sena Maximum Configurable Power In Va	500 VA
Sena Maximum Configurable Power In W	300 W
Sena Mounting Location	front
Sena Mounting Mode	not rack-mountable
Sena Mounting Preference	no preference
Sena Nb Of Power Socket Outlets	3 NEMA 5-15R 3 NEMA 5-15R surge
Sena Network Frequency	50/60 Hz ± 3 Hz auto-sensing
Sena Noise Suppression	full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Sena Number Of Battery Replacement Quantity	1.0000
Sena Number Of Cables	1.0000
Sena Number Of Tare Power	7 W
Sena Operating Altitude	0…10000 ft
Sena Output Frequency	50/60 Hz ± 3 Hz sync to mains
Sena Output Voltage	120 V
Sena Output Voltage 1	120 V
Sena Performance Multiplier	1.0000
Sena Plug Standard	NEMA 5-15P
Sena Product Certifications	cUL listed# #California Energy Commission (CEC)# #ENERGY STAR V2.0 (USA)# #Industry Canada
Sena Provided Equipment	CD with software cord management straps USB cable user manual
Sena Provided Equipment 1	CD with software cord management straps USB cable user manual
Sena Provided Equipment 2	CD with software cord management straps USB cable user manual
Sena Rated Power In Va	500 VA
Sena Rated Power In W	300 W
Sena Redundant	No
Sena Relative Humidity	0-95 %
Sena Show Note Op Temperature	No
Sena Size Ups Version	workstation
Sena Standards	FCC part 15 class B# #UL 1778
Sena Storage Altitude	0-50000 ft
Sena Storage Relative Humidity	0-95 %
Sena Surge Energy Rate	480 J
Sena Transfer Time	8 ms typical : 12 ms maximum
Sena Ups Size	WS
Sena Ups Type	standby
Sena Usb Compatible	Yes
Sena Value Multiplier	1.0000
Sena Wave Type	stepped approximation to a sinewave
