Omega

Omega DMD-465

SKU: CS3038224MPN: DMD-465

Strain Amplifier/Conditioner for Bridge, Load Cell, Transducers

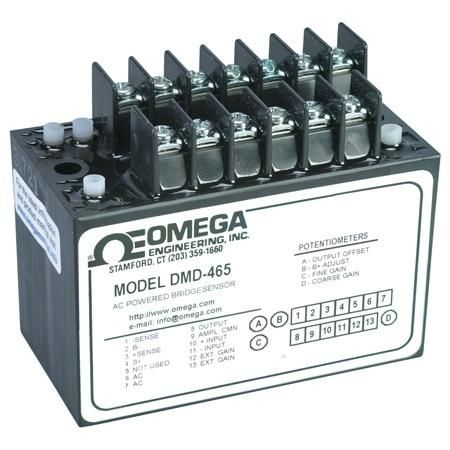

Omega DMD-465, DMD-465WB, DMD-466
$909.16
Unit
Available on backorder
remove
add

Documents

Product Details

  • Bridge Excitation 4 to 15 Vdc up to 120 mA
  • Works with Bridge Circuits of 120 Ohms or Higher
  • Adjustable Gain and Offset
  • 6-Wire Bridge Connections

Attributes

CMRR 90 dB @ gain 40, 100 dB @ gain 250
Width 51 mm
Height 73 mm
Length 96 mm
Weight 510 g
Bandwidth 3 Hz (-3 dB)
Linearity ± 0.05%
Series ID DMD-465-Series-Str-Amp
Gain Range 40 to 250
Input Type Voltage
Capacitance 50 pF
Input Range 10 mV to 50 mV
Output Noise 120 µVrms
Supply Power 115 Vac
Output Detail ± 10 Vdc @ 2 kΩ Load
Output Signal Voltage
Impedance Input 3000 MΩ
Impedance Output 1 Ω
Input Resistance 4_to_20_ma_1_to_5_vdc
Country of Origin United States
Electrical Output ± 10 Vdc
Sensor Excitation 4 to 15 Vdc
Supply Power Note Standard 115 Vac or optional 220 Vac ± 10% 50/60 Hz or 10 to 36 Vdc 0.7 A @ 10V, 0.17 A @ 36V at maximum excitation load
Supply Power Type AC
Compliance Voltage 10 Vdc
Input Bias Current 30 nA
Common Mode Voltage ± 15V
Loop Resistance, Max 500 Ω
Excitation Voltage Note Excitation Voltage Range: 4 to 15 Vdc Current Output: 120 mA max Line and Load Regulation: (0 to 100 mA) 0.05% max Output Noise: 0.5 mVrms
Temperature Coefficient Gain: 200 ppm/°C
Storage Temperature, Max 85 °C
Storage Temperature, Min -25 °C
Operating Temperature, Max 70 °C
Operating Temperature, Min 0 °C

Specifications

SKUCS3038224
MPNDMD-465
