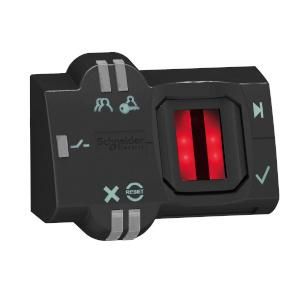

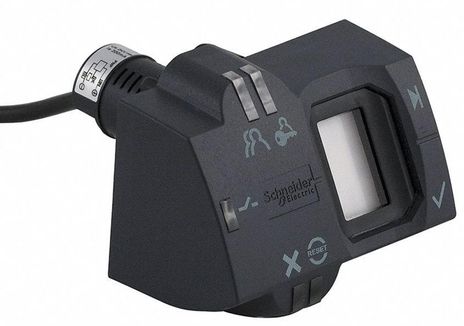

Square D XB5S2B2M12

Name: Square D XB5S2B2M12
Brand: Square D
SKU: CS3641412
Price: 503.80 USD
Availability: OutOfStock

SKU: CS3641412MPN: XB5S2B2M12

Biometric switch monostable, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC

$503.80

Unit

Available on backorder

Quantity

remove

add

Product Details

Biometric switch monostable, plastic, Dia 22, connection by M12 connector, 24 V AC/DC

Ambient Air Temperature For Operation	-5-50 °C
Ambient Air Temperature For Operation 1	-5-50 °C
Ambient Air Temperature For Storage	-25-70 °C
Bezel Material	dark grey plastic
Cable Insulation Material	PvR
Device Short Name	XB5S
Enclosure Material	polyamide PA66
Function Of Module	monostable
Marking	CE
Marking 1	CE
Maximum Delay Recovery	1.5 s
Maximum Delay Response	1.5 s
Maximum Switching Current	200 mA
Memory Usage	200 users with up to 2 fingerprints per user
Mounting Diameter	22 mm
Operating Position	vertical surface installation# #horizontal position# #flat surface installation
Output Type	PNP
Product Certifications	CSA# #UL
Product Or Component Type	biometric switch
Product Specific Application	industrial machines# #materials handling
Protection Type	overload protection# #short-circuit# #reverse polarity
Range Of Product	Harmony XB5S
Sale Per Indivisible Quantity	1.0000
Standards	IEC 61000-6-2# #IEC 61000-6-4
Type Of Operator	momentary
