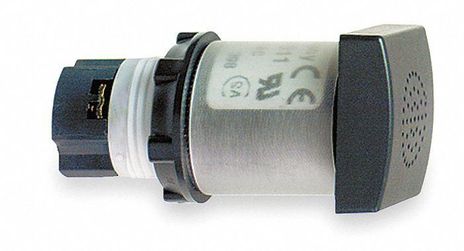

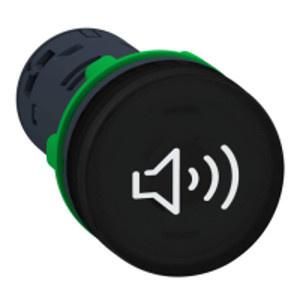

Square D XB5KSB

Name: Square D XB5KSB
Brand: Square D
SKU: CS1642188
Price: 193.81 USD
Availability: OutOfStock

SKU: CS1642188MPN: XB5KSB

Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC

$193.81

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony Continuous or Intermittent Buzzer

Mounting Diameter: 22mm* Head Type: Standard* Cap/Operator or Lens Color: Black* Rated Supply Voltage: 24V (+/- 10%)* Supply Circuit Type: AC/DC* Supply Frequency: 50/60 Hz* Dimensions: 29mm H x 29mm W x 55mm D* Degree of Protection: NEMA 4X, 13

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	dark grey plastic
Cap Operator Or Lens Colour	black
Cap Operator Or Lens Colour 1	black
Current Consumption	<= 28 mA
Head Type	standard
Mounting Diameter	22 mm
Nema Degree Of Protection	NEMA 4X# #NEMA 13
Product Certifications	UL listed# #CSA# #BV
Product Or Component Type	annunciator
Protective Treatment	TH
Range Of Product	Harmony XB5
Signalling Type	continuous or intermittent tone
Signalling Type 1	continuous or intermittent tone
Standards	IEC 60947-5-1# #EN 60947-1# #EN 60947-5-1# #EN 60947-5-4# #CSA C22.2 No 14# #IEC 60947-5-4# #IEC 60947-1# #UL 508# #JIS C8201-5-1# #JIS C8201-1
Supply Circuit Type	AC/DC
Supply Frequency	50/60 Hz
