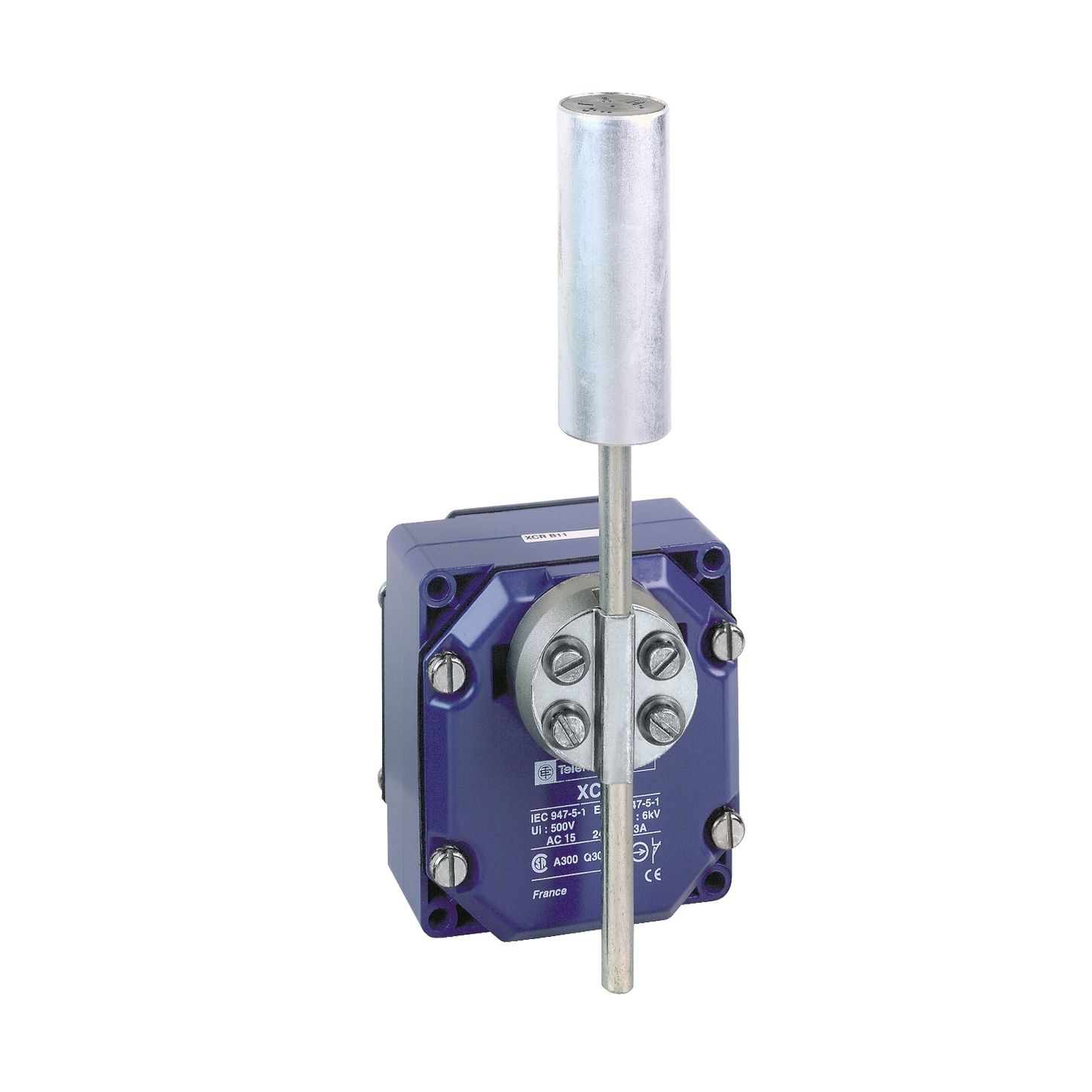

Square D XCRT115

Name: Square D XCRT115
Brand: Square D
SKU: CS3163924
Availability: OutOfStock

SKU: CS3163924MPN: XCRT115

Limit switch, Limit switches XC Standard, XCRT, metal enclosure zinc plated steel roller with lever, 2C/O

Product Details

Limit switch XCRT - metal enclosure zinc plated steel roller with lever - 2C/O

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	zinc alloy
Body Type	fixed
Contact Block Per Direction Control Circuit	2 per direction
Contact Operation	snap action
Contacts Insulation Form	Za
Contacts Type And Composition	2 C/O
Device Short Name	XCRT
Fixing Mode	by the body
Head Type	rotary head
Material	metal
Maximum Displacement Angle	-90 °# #90 °
Mechanical Durability	300000 cycles
Minimum Actuation Speed	0.01 m/min
Minimum Torque For Tripping	1 N.m
Movement Of Operating Head	rotary
Number Of Poles	2.0
Positive Opening	without
Product Or Component Type	limit switch
Product Specific Application	for conveyor belt shift monitoring
Protective Treatment	TC
Range Of Product	OsiSense XC
Series Name	special format
Standards	EN 60947-5-1# #NF C 79-130# #CSA C22.2 No 14# #IEC 60947-5-1# #IEC 60204-1# #EN 60204-1
Switch Actuation	by conveyor belt
Terminals Description Iso N 1	(11-12)NC# #(13-14)NO
