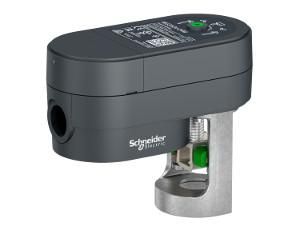

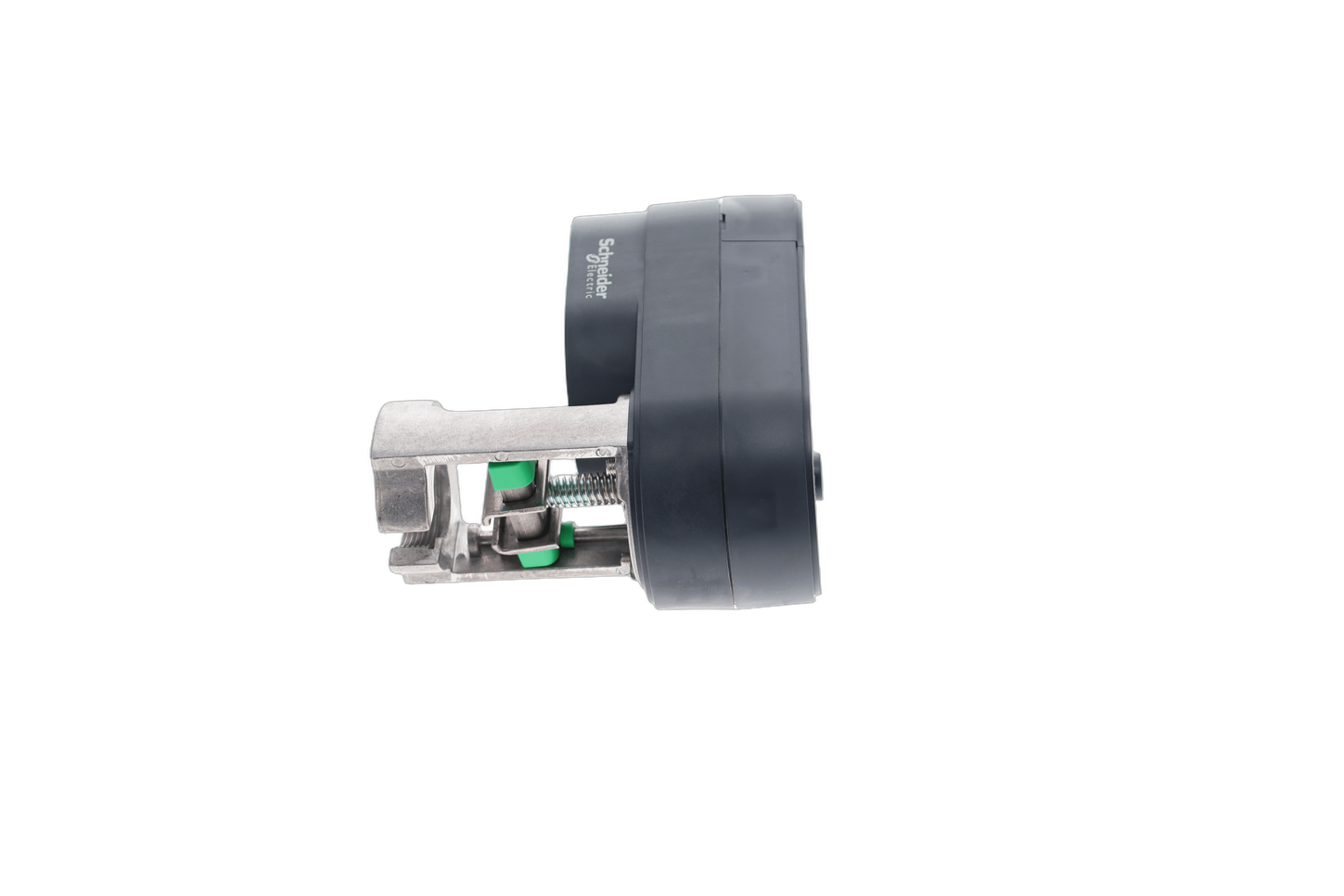

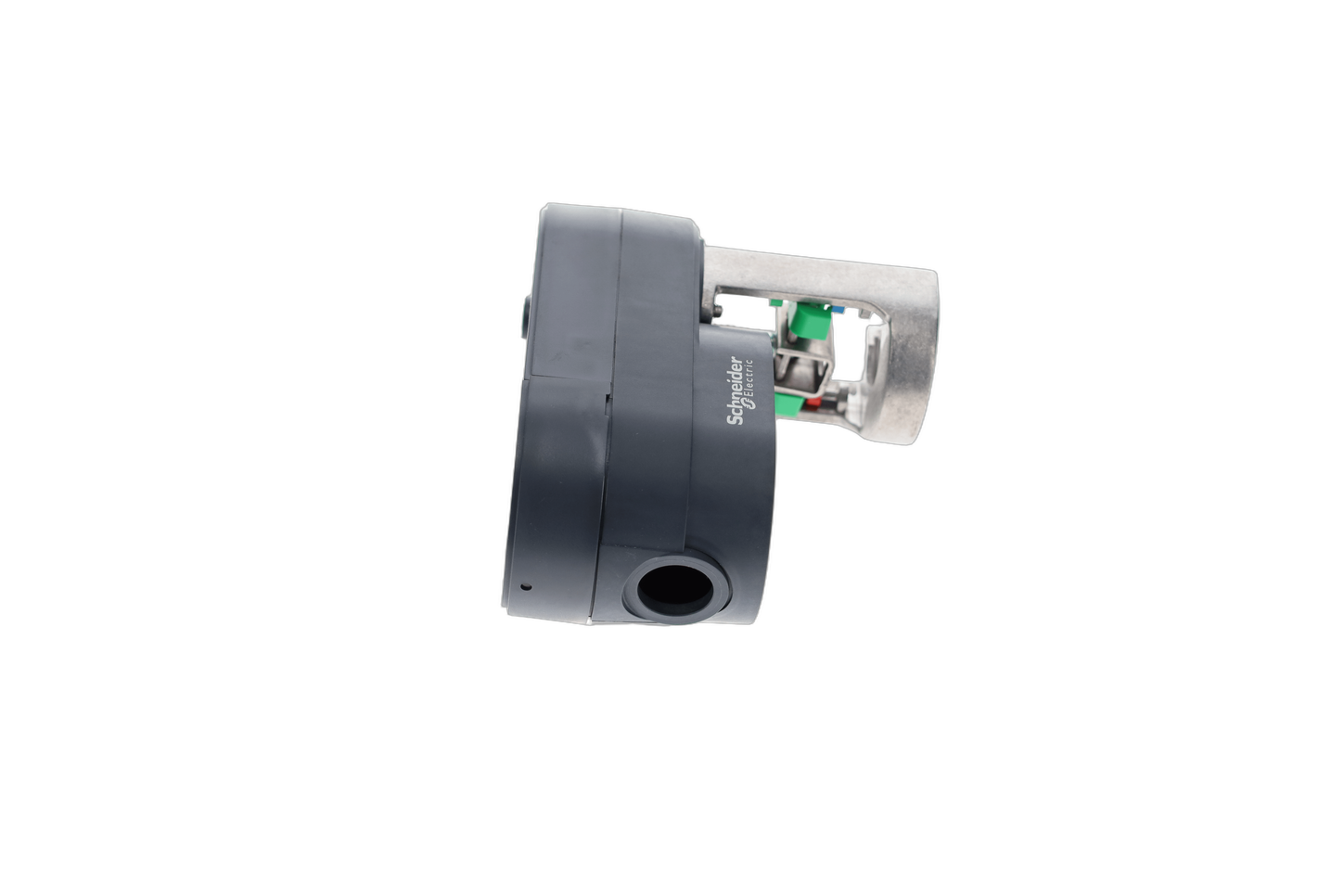

Schneider Electric MG350V-24M

SKU: CS3157454MPN: MG350V-24M

SmartX, Globe Valve Actuator, proportional, non-spring return, 24 Vac/Vdc, 78 lbf, LED status indicator, NEMA 2

Schneider Electric MG350V-24M, MGF350V-24FP, MGF350V-24MP
$127.44
Unit
14 in stock
remove
add

Documents

Product Details

Actuator: (MG350V-24M):

  • Actuator Type: Electric
  • Control Signal: Modulating
  • Control Signal Range: 0 to 10 VDC, 2 to 10 VDC
  • Loss of Power Type: Non-Spring Return
  • Power Input Voltage: 24 VAC, 20 to 24 VDC
  • Force: 78 lbf
  • Mechanical Movement: Linear
  • Additional Features: LED Status Indicator
  • Protection Rating: NEMA 2
  • Product Line: Schneider Electric
  • Product Range: SmartX Actuator
  • Product Series: MG350V
  • Actuator Use: Globe Valves

Product Alert: Field selectable. The 2 to 10 VDC output signal range also includes an alarm signal.

Attributes

Us Rated Supply Voltage 24 V AC
Actuator linear
Ambient Air Temperature For Operation -5-55 °C
Ambient Air Temperature For Storage -40-70 °C
Analogue Input Range 0…10 V DC
Control Type automatic reset
Current Consumption 7.2 A
Force Lbf 78 lbf
Force N 347 N
Hold In Power Consumption In Va 1.2-1.2 VA AC
Ip Degree Of Protection IP11
Material EPDM: O-rings polycarbonate: housing reinforced teflon: seal
Nema Degree Of Protection NEMA 2
Power Consumption In Va 7.2 VA AC
Product Destination globe valve
Product Or Component Type actuator
Relative Humidity 5-95 % non-condensing
Stroke Running Time 102 s
Switch Function No
Targeted Region North America.
Taxoclass Id PTC_D54011_XXX

Specifications

SKUCS3157454
MPNMG350V-24M
