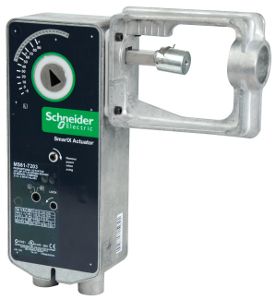

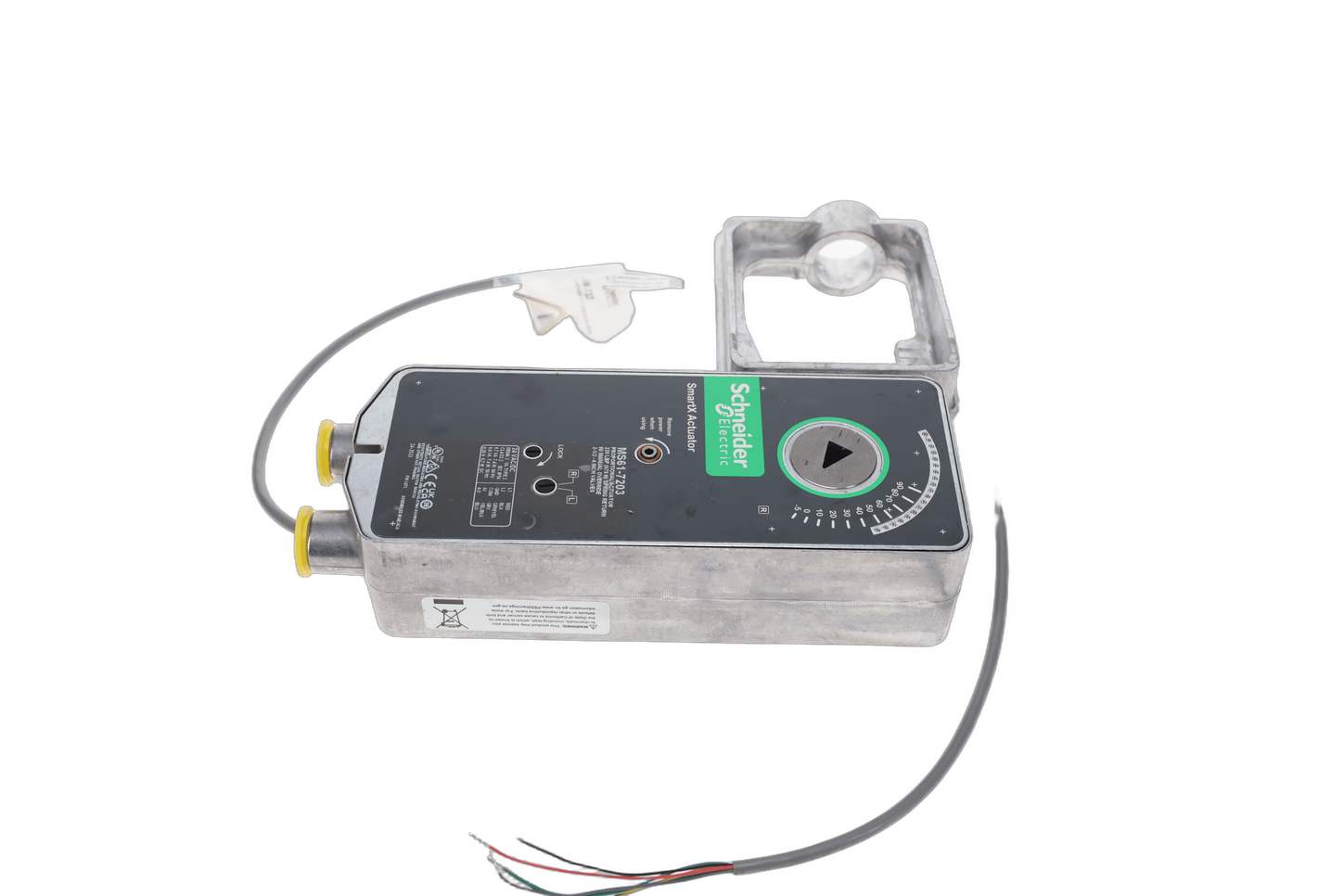

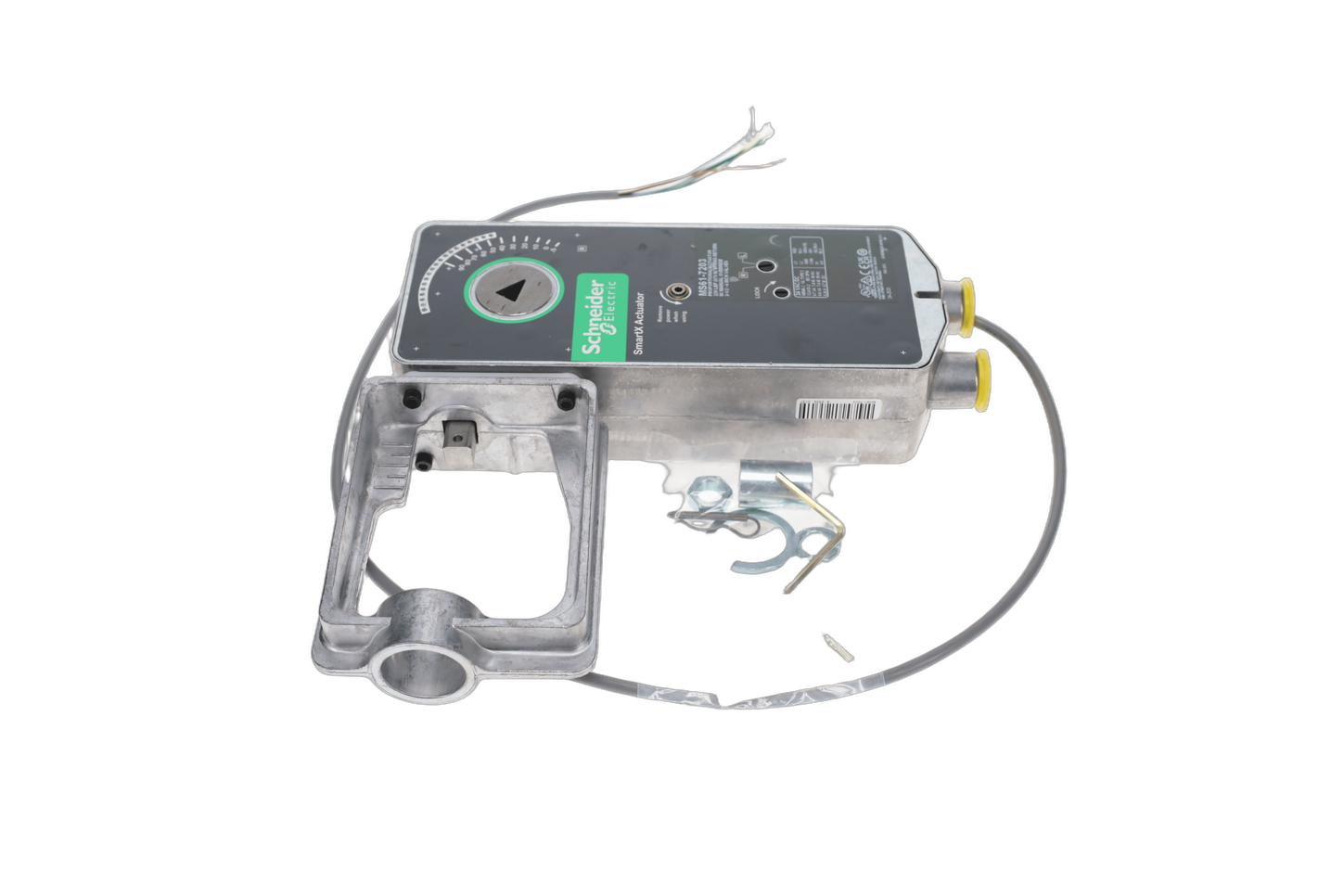

Schneider Electric MS61-7203
SKU: CS560067MPN: MS61-7203UPC/EAN: 711426485905
SmartX, Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft plenum cable, 220 lbf, 25 mm stroke, NEMA 1

$456.18
Unit10 in stock
Product Details
Actuator: (MS61-7203):
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC or 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Force: 220 lbf
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: Mx4x-7xxx
- Actuator Use: Butterfly Valves, Globe Valves
Attributes
| Us Rated Supply Voltage | 22…30 V DC 24 V AC |
| Actuator | linear |
| Ambient Air Temperature For Operation | -17.7-60 °C |
| Ambient Air Temperature For Storage | -40-71 °C |
| Analogue Input Range | 2…10 V DC 4…20 mA DC |
| Control Type | automatic reset |
| Current Consumption | 300 mA |
| Electrical Insulation Class | class II |
| Force Lbf | 220 lbf |
| Force N | 979 N |
| Hold In Power Consumption In W | 3.3-3.3 W |
| Ip Degree Of Protection | IP11 |
| Material | die cast aluminium: housing |
| Motor Type | brushless DC motor |
| Nema Degree Of Protection | NEMA 1 |
| Power Consumption In Va | 9.8 VA AC |
| Power Consumption In W | 7.7 W |
| Product Destination | butterfly valves globe valve |
| Product Or Component Type | actuator |
| Relative Humidity | 15-95 % non-condensing |
| Switch Function | No |
| Targeted Region | North America. |
| Taxoclass Id | PTC_D54011_XXX |
Specifications
| SKU | CS560067 |
|---|---|
| MPN | MS61-7203 |
| UPC/EAN | 711426485905 |
