HVAC/RActuatorsSchneider Electric

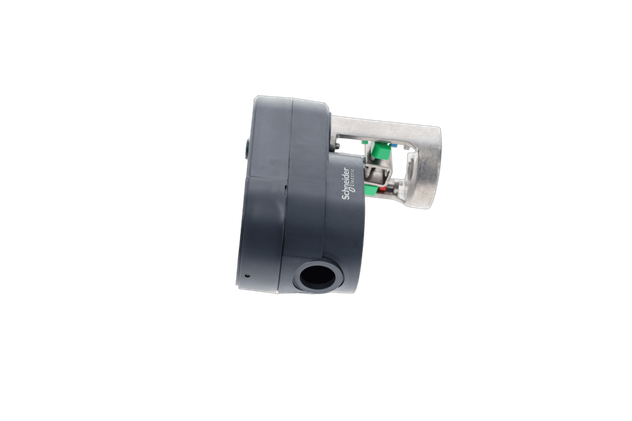

Schneider Electric MP131-24MP

SKU: CS3751890MPN: MP131-24MP

SmartX, Pressure Independent Valve Actuator, proportional, non-spring return, 24 Vac, 130 N, LED signaling, IP42

Schneider Electric MP131-24F, MP131-24MP, MP131-24T
$160.09
Unit
3 in stock
remove
add

Product Details

Actuator: (MP131-24MP):

  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Non-Spring Return
  • Power Input Voltage: 24 VAC
  • Leads and Connections: No leads
  • Force: 130 N
  • Mechanical Movement: Linear
  • Additional Features: LED Status Indicator, Weekly anti blocking selection
  • Protection Rating: IP42
  • Product Line: Schneider Electric
  • Product Range: SmartX Actuator
  • Product Series: MP131
  • Actuator Use:Pressure Independent Control Valves

Attributes

Us Rated Supply Voltage 24 V AC
Actuator linear
Ambient Air Temperature For Operation 0-55 °C
Ambient Air Temperature For Storage -40-70 °C
Analogue Input Range 0…10 V DC
Control Type automatic reset
Electrical Insulation Class class III
Force Lbf 30 lbf
Force N 130 N
Ip Degree Of Protection IP42
Material polycarbonate: housing
Power Consumption In Va 1.5 VA AC
Product Destination dampers pressure independent control valves
Product Or Component Type actuator
Relative Humidity 0-95 % RH, non-condensing
Stroke Running Time 24 s
Switch Function No
Targeted Region North America.
Taxoclass Id PTC_D54006_XXX

Specifications

SKUCS3751890
MPNMP131-24MP
