Dwyer V4-2-D-U

Name: Dwyer V4-2-D-U
Brand: Dwyer
SKU: CS2712631
Price: 838.85 USD
Availability: OutOfStock

SKU: CS2712631MPN: V4-2-D-UAlternate Part #: 119108-00

V42DU FLOTECT FLOW SW

$838.85

Unit

Available on backorder

Quantity

remove

add

Product Details

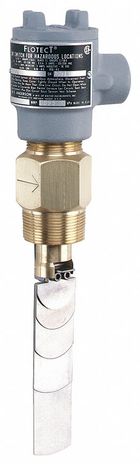

Vane operated flow switch, brass body, universal vane.

Attributes

Commodity Code	8202
Compliance	ATEX, CE, CSA, FM, IECEx, UL**.
Conduit Connection	¾” female NPT or 19.05 mm standard or M25 with -BSPT option.
Electrical Connection	UL and CSA models: 16 AWG, 6” (152 mm) long. ATEX and IECEx unit: Terminal block.
Electrical Rating	UL, FM, ATEX and IECEx models 10 A @ 125/250 VAC. CSA models: 5 A @ 125/250 VAC; 5 A res., 3 A ind. @ 30 VDC . MV option: 1 A @125 VAC; 1 A res., .5 A ind. @ 30 VDC. MT option: 5 A @ 125/250 VAC. [MT and MV option not UL, CSA, FM or ATEX or IECEx].
Enclosure Rating	Weatherproof and Explosion-proof. **Listed with UL and CSA for Class I, Groups C and D; Class II, Groups E, F, and G. ATEX CE 2813 EX II 2 G Ex db IB T6 Gb -20°C_x0089_¤Tamb_x0089_¤73°C. -20°C_x0089_¤Process Temp_x0089_¤73°C. EU-Type Certificate No.: KEMA 03 ATEX 2383. ATEX Standards: EN 60079-0:2012+A11:2013;EN 60079-1:2014. IECEx Certified: For Ex db IB T6 Gb - 20°C_x0089_¤Tamb_x0089_¤73°C. -20°C_x0089_¤Process Temp_x0089_¤73°C. IECEx Certificate of Conformity: IECEx DEK 11.0071. IECEx Standards: IEC 60079-0: 2011; IEC 60079-1: 2014. Zone I. Also FM approved.
Mounting Orientation	Within 5° of vertical for proper operation. Units for horizontal installation (vertical pipe with up flow) available.
Pressure Limit	Brass body 1000 psig (69 bar), 316 SS body 2000 psig (138 bar), optional 5000 psig (345 bar) available with 316 SS body and SPDT switch only.
Process Connection	1-½” male NPT or 1-½” male BSPT or 38.10 mm.
Service	Gases or liquids compatible with wetted materials.
Set Point Adjustment	For universal vane: five vane combinations.
Switch Type	SPDT snap switch standard, DPDT snap switch optional.
Wetted Material	Vane: 316 SS; Body: Brass or 316 SS standard; Magnet Keeper: 430 SS standard, 316 SS optional; Options: Other materials also available, consult factory (e.g. PVC, Hastelloy, Nickel, Monel, Titanium).
