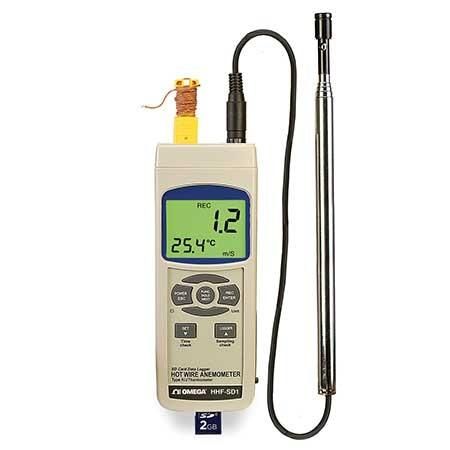

Omega HHF-SD1

SKU: CS3098914MPN: HHF-SD1

Hot Wire Anemometer with Real Time Data Logger

Omega HHF-SD1
$927.76
Unit
Available on backorder
remove
add

Documents

Product Details

  • Slim Probe, Ideal for Grilles and Diffusers
  • Type K or J Thermocouple Input
  • Real Time SD Memory Card Data Logger
  • LCD with Green Light Backlighting

Attributes

Width 1.5 in
Height 8 in
Length 3 in
Weight 515 g
Accuracy ± 5 %
Series ID HHF-SD1-Meter
Resolution 0.1°C (0.1°F)
Form factor Handheld
Display Type Backlit LCD
Probe Length 37 in
Sampling Time 1 to 3600 sec
Data Interface RS232, USB
Probe Diameter 0.47 in
Accuracy Detail ± (5% + a) reading or ± (1% + a) full scale whichever is greater
Air Velocity, Max 3940 m/h
Air Velocity, Min 40 m/h
Country of Origin Taiwan
Power Consumption max 48 mA
Supply Power Note Alkaline Batteries or Heavy Duty Batteries
Operating Humidity 0 to 85% RH
Sampling Time Note Sampling Time: Auto: 1 to 3600 seconds Manual: Push the data logger button once; will save data one time
Temperature Accuracy ± 0.5%
Battery Size and Type Alkaline AAA
Display Measuring Units °C, °F, ft/min, k/h, knot, mile/hr, m/s
Temperature Sensor Type Thermocouple Type K or Thermistor
Process Temperature, Max 50 °C
Process Temperature, Min 0 °C
Operating Temperature, Max 50 °C
Operating Temperature, Min 0 °C
Temperature Sensor Type Note Glass bead thermistor

Specifications

SKUCS3098914
MPNHHF-SD1
