Omega OM-EL-USB-TC

Name: Omega OM-EL-USB-TC
Brand: Omega
SKU: CS5796888
Price: 189.91 USD
Availability: OutOfStock

SKU: CS5796888MPN: OM-EL-USB-TC

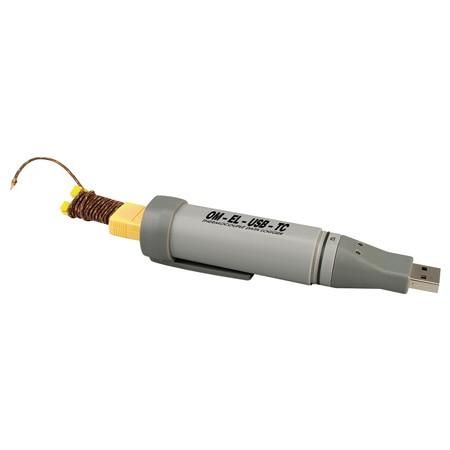

Thermocouple Data Logger with USB Interface

$189.91

Unit

Available on backorder

Quantity

remove

add

Documents

Plugs Directly Into USB Port for Easy Setup and Data Download—No USB Cable Required
Accepts Type J, K or T Thermocouples
2 User-Programmable Alarm Thresholds
Bright Red, Green and Orange LED Indication

Width	26.8 mm
Length	118.2 mm
Memory	32700
Weight	43 g
Diameter	27 mm
Series ID	OM-EL-USB-TC-Logger
Alarm Note	High/Low Alarms: Selectable in software
Input Type	TC
Form factor	Handheld
Memory Note	32,000 readings
Samples,Max	33000
Battery life	up to 6 mo
Sampling Rate	1 Hz (1 update/second)
Data Interface	USB
LED Indicators	2 LEDs
Measurement Type	Temperature
Country of Origin	China
Display Type Note	°C or °F selectable in software
Supply Power Type	Battery
Sampling Rate Note	1 sec, 10 sec, 1 min, 5 min, 30 min, 1 hr, 6 hr, 12 hr (selectable in software)
Temperature Accuracy	± 1.0°C
Battery Size and Type	½ AA Li-ion
Electrical Connection	Sub-D Female Miniature Connector
Number of Measurements	1
Software Compatibility	Windows® XP/VISTA/7 and 8 (32- and 64-bit)
Temperature Resolution	0.5 °C
Display Measuring Units	°C, °F
Temperature Sensor Type	Thermocouple
Operating Temperature, Max	40 °C
Operating Temperature, Min	-10 °C
