Omega

Omega RHXL3SD

SKU: CS3134747MPN: RHXL3SD

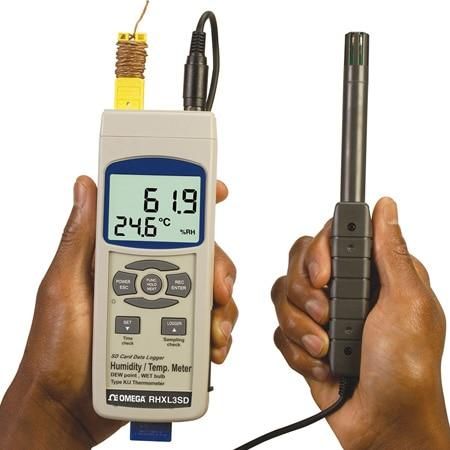

Handheld Thermometer/ Hygrometer Data Logger

Omega RHXL3SD
$691.83
Unit
Available on backorder
remove
add

Product Details

  • Discontinued. Replaced by RHXL5SD.
  • 2 GB SD Card Included
  • Temperature/Humidity Probe
  • SD Card, Real Time Data Logger (Temperature/Humidity Only)
  • Large Backlit Dual LCD Display
  • MAX/MIN/HOLD Function
  • Dew Point Measurement (Display Only)
  • Wet Bulb Temperature (Display Only)
  • J/K Thermocouple Input
  • Auto Power Off Feature
  • USB Cable or RS232 Cable (Optional)
  • Windows Software (Optional)

Attributes

Width 2.68 in
Height 6.97 in
Length 1.77 in
Weight 489 g
Series ID RHXL3SD-Series
Display Size 64 mm (2.5 in)
Display Type LCD
Sampling Time 1 to 3600 sec
Supply Voltage 9 Vdc
Measurement Type Dew Point
Storage Capacity SD Card upto 16 GB
Country of Origin Taiwan
Display Type Note Liquid-crystal with green backlight
Power Consumption max 28 mA
Storable Readings Maximum, Minimum
Number of Channels 3
Settable Parameters Auto Power Off, Beep Sound, Date, Decimal Point, Sampling Time, Temperature Unit, Time
Temperature Accuracy ± 0.8 °C
Additional Features 1 SD Card Data Logger
Additional Features 2 Embedded microcontroller
Relative Humidity, Max 0.85
Relative Humidity, Min 0%
Temperature Resolution 0.1 °C
Process Temperature, Max 48.9 °C
Process Temperature, Min -25.3 °C
Temperature Accuracy Note ± 1.5°F (± 0.8 °C) for temperature; sum of temperature and humidity accuracies for dew point and wet-bulb temperature.
Operating Temperature Note Wet-Bulb Temperature: -21.6 to 50 °C
Operating Temperature, Max 50 °C
Operating Temperature, Min 0 °C
Relative Humidity Accuracy ± 3.0% RH
Temperature Resolution Note 0.1 degree (F or C) for temperature and humidity
Dew/Frost Point Temperature Max 48.9 °C
Relative Humidity Accuracy Note ≥70% RH: ± (3% reading + 1% RH), <70% RH: ± 3% RH
Dew/Frost Point Temperature, Min -25.3 °C
Measuring Temperature Range, Max 50 °C
Measuring Temperature Range, Min 0 °C

Specifications

SKUCS3134747
MPNRHXL3SD
