Siemens GAP196.1P
SKU: CS3076779MPN: GAP196.1PUPC/EAN: 4034106339913
Damper Actuator, 53 lb-in, Fail-In-Place, Fast Acting, Switches
$369.28
Unit2 in stock
Product Details
Fail-In-Place, 53 lb-in, 24 Vac/dc, 2-sec, universal control signal (two-position, floating, 0-10Vdc/2-10Vdc, 4-20mA/0-20mA, Siemens proprietary FHC/LRC pulsed), switches
Attributes
| Actuation Style | Rotary |
| Actuator Type | Fast-Acting/Fail-In-Place |
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -18…50 °C; 0…112 ºF |
| Auxiliary Switch | Yes |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | Universal |
| Fail Safe | No |
| Frequency | 50/60 Hz |
| Material Housing | NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
| Operating Voltage | 24 VAC/DC |
| Plenum Or Standard Rating | Plenum |
| Position Feedback | Yes |
| Positioning Time | Runtime (operating with motor) |
| Power Consumption | Running: 28 VA / 19 W, Holding: 8 VA / 5 W |
| Supply Voltage | 24 VAC/DC |
| Torque | 53 lb-in |
Specifications
| SKU | CS3076779 |
|---|---|
| MPN | GAP196.1P |
| UPC/EAN | 4034106339913 |
You may also like
Siemens GAP191.1P
$317.58Unit

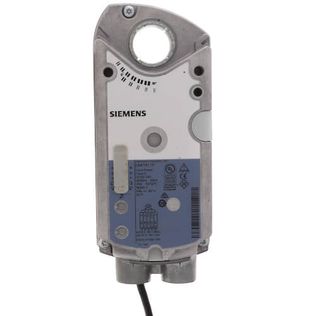

Siemens GNP191.1P
