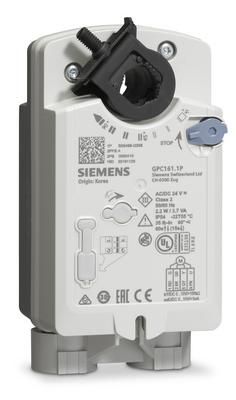

Siemens GPC161.1P
SKU: CS3715566MPN: GPC161.1PUPC/EAN: 4047625002527
OpenAir Damper Actuator, SR Rotary, 35 lb-in
$273.14
Unit1 in stock
Product Details
OpenAir GPC Series Electric Damper Actuator, spring return, 35 lb-in. For use on economizer dampers and small control dampers
Attributes
| Actuation Style | Rotary |
| Actuator Type | Spring return |
| Ambient Temperature Operation | -25 to 130 °F, -32 to 55 °C |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 0…10Vdc / 2…10Vdc |
| Fail Safe | Yes |
| Frequency | 50/60 Hz |
| Material Housing | NEMA 1, Plenum rated rugged plastic |
| Operating Voltage | 24 VAC;24 VDC |
| Plenum Or Standard Rating | Plenum |
| Position Feedback | Yes |
| Positioning Time | Runtime for 90° 60 s |
| Power Consumption | Running: 3.5 VA (2.1 W), Holding: 2.8 VA (1.7 W) |
| Supply Voltage | 24 VAC/DC |
| Torque | 35 lb-in |
Specifications
| SKU | CS3715566 |
|---|---|
| MPN | GPC161.1P |
| UPC/EAN | 4047625002527 |
You may also like
Siemens GPC166.1P
$316.04UnitSiemens GPC136.1P
$282.65UnitSiemens GPC131.1P
$229.00UnitSiemens GPC126.1P
$257.62UnitSiemens GPC326.1U
$286.24UnitSiemens GPC121.1P
$193.80Unit
Siemens GCA156.1P
$475.07UnitSiemens GPC321.1U
$230.30Unit

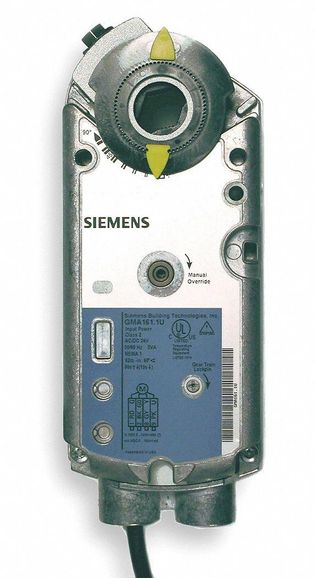

Siemens GMA166.1P
