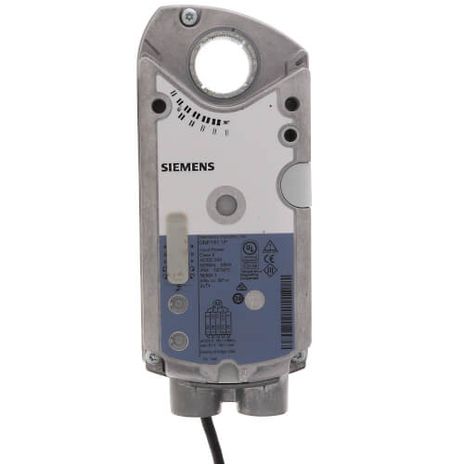

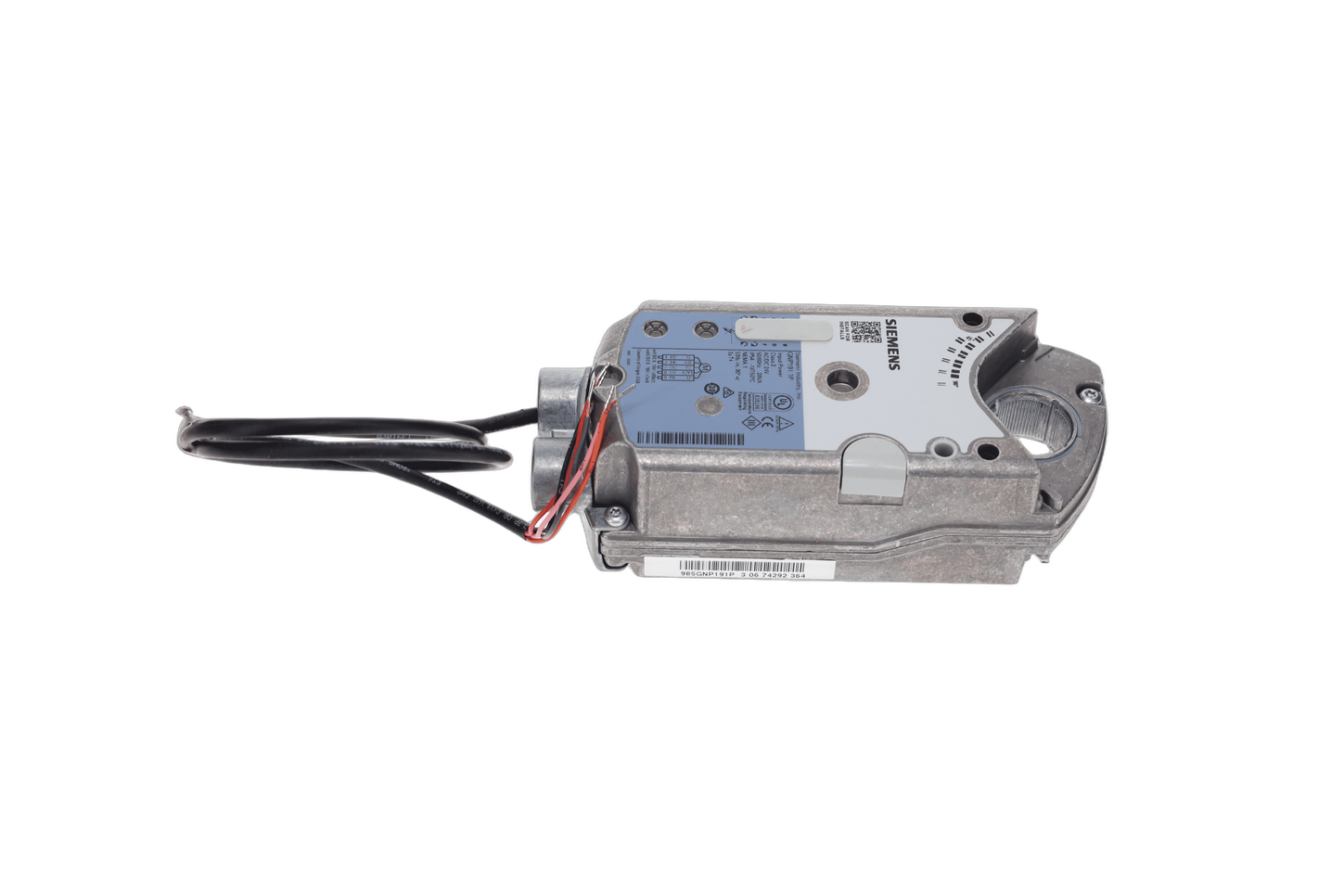

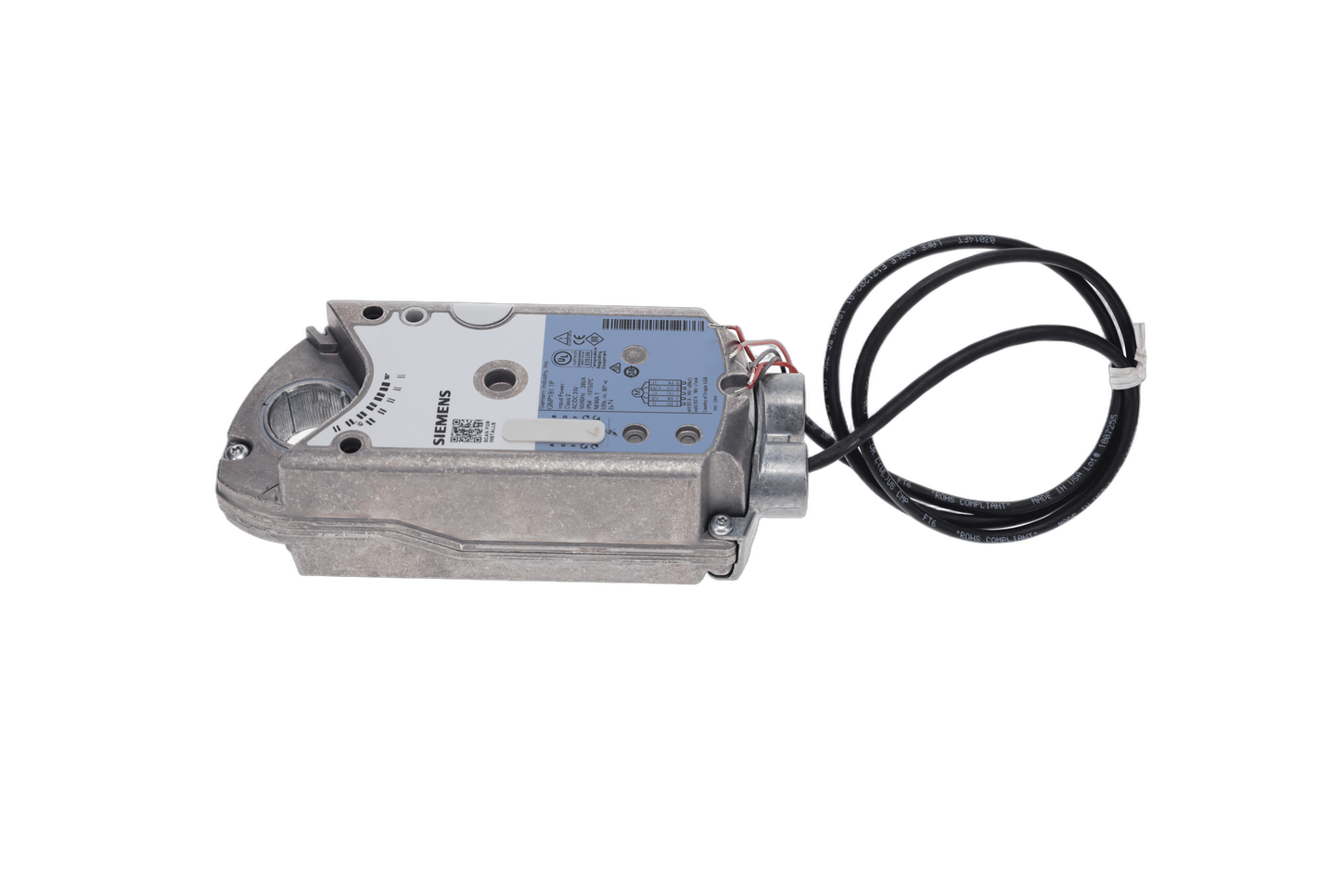

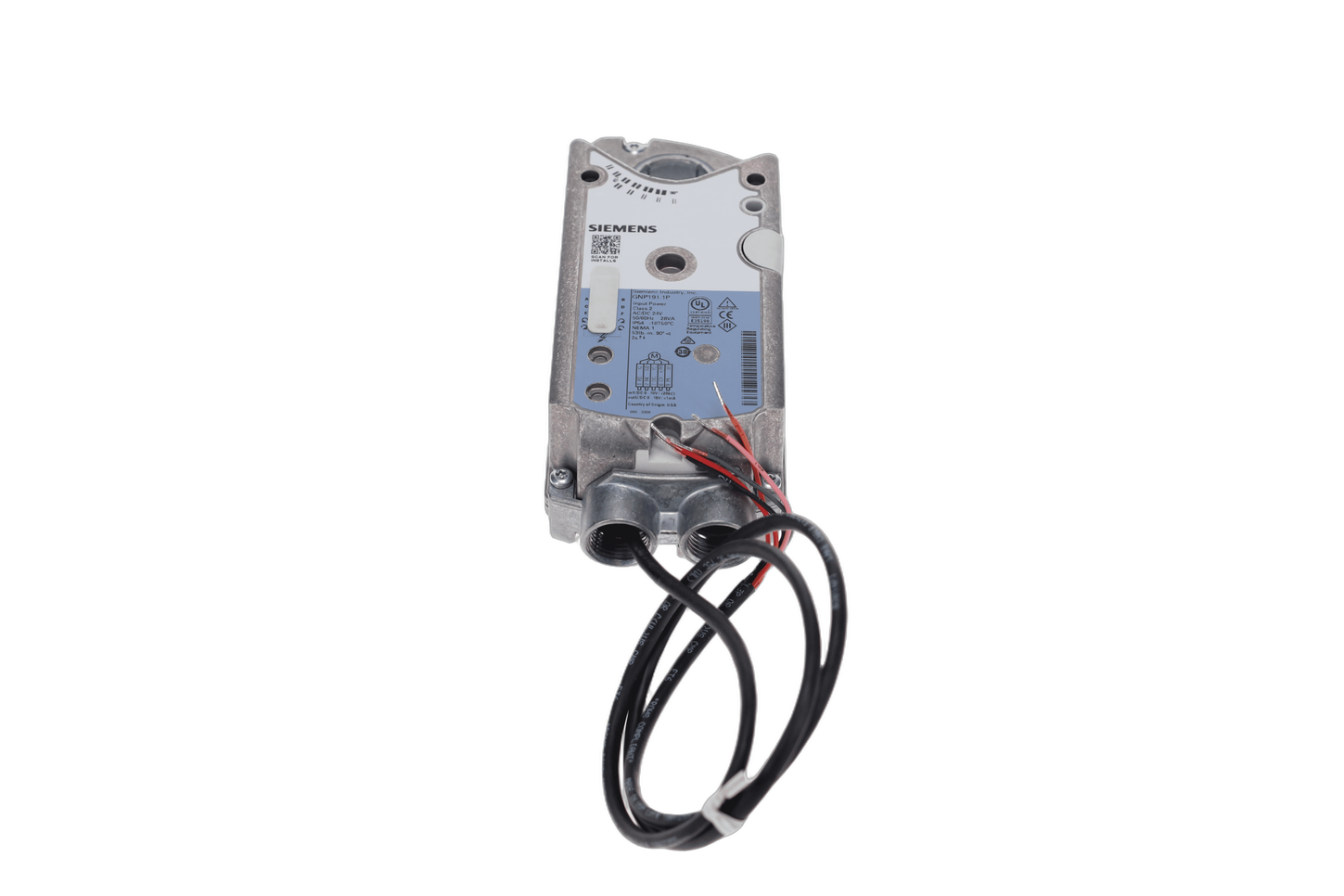

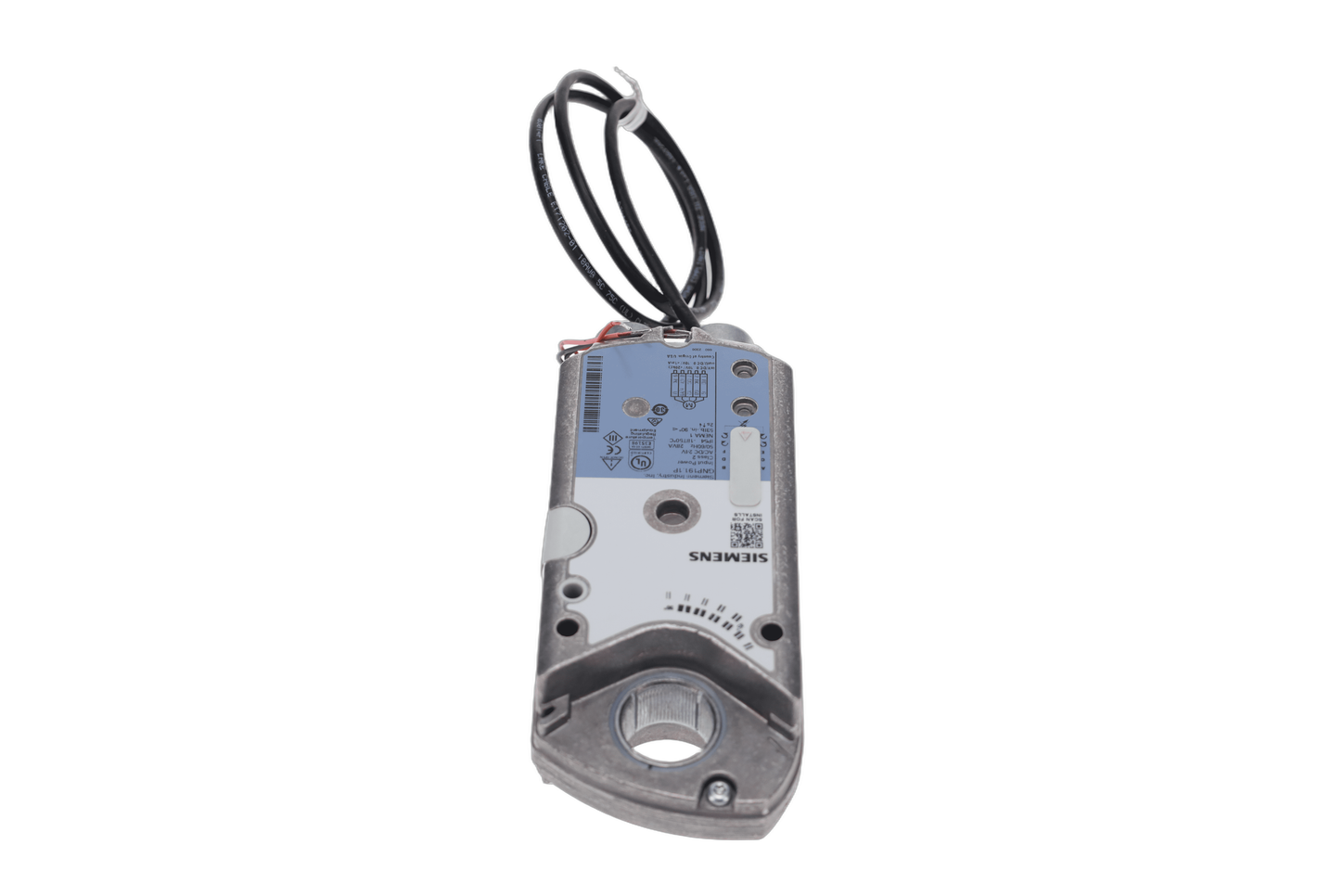

Siemens GNP191.1P
SKU: CS2758685MPN: GNP191.1PUPC/EAN: 4034106341138
Damper Actuator, Fast Acting, Fail Safe 53 lb-in
$389.85
Unit43 in stock
Product Details
Fail Safe, 53 lb-in, 2-second, 24Vac/dc, universal control signal (two-position, floating, 0-10Vdc/2-10Vdc, 4-20mA/0-20mA, Siemens proprietary FHC/LRC pulsed), shaft diameter is ¼ to ¾ in. round or ¼ to ½ in square
Attributes
| Actuation Style | Rotary |
| Actuator Type | Fast-Acting/Fail Safe |
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -18…50 °C; 0…122 ºF |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | Universal |
| Fail Safe | Yes |
| Frequency | 50/60 Hz |
| Material Housing | NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
| Operating Voltage | 24 VAC/DC |
| Plenum Or Standard Rating | Plenum |
| Position Feedback | Yes |
| Positioning Time | Open:2 s;Close:2 s |
| Power Consumption | Running: 20 VA / 13 W, Holding: 8 VA / 5 W |
| Supply Voltage | 24 VAC/DC |
| Torque | 53 lb-in |
Specifications
| SKU | CS2758685 |
|---|---|
| MPN | GNP191.1P |
| UPC/EAN | 4034106341138 |
You may also like

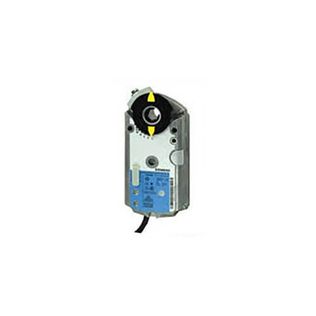

Siemens GAP191.1P
$317.58Unit

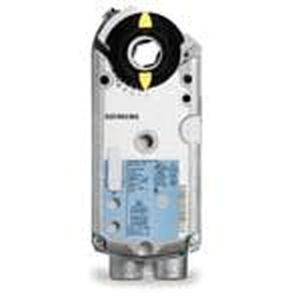

Siemens GAP196.1P
$369.28Unit

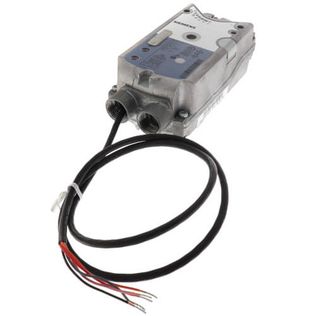

Siemens GNP196.1P
