HVAC/RActuatorsSiemens Building Technologies

Siemens GND121.1U

SKU: CS3013768MPN: GND121.1UUPC/EAN: 4034106331368

Electric Actuator 53 in.-lb. 24VAC/DC

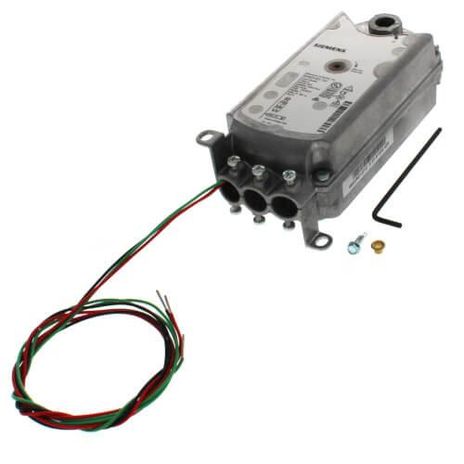

Siemens Building Technologies GND121.1U
Siemens Building Technologies GND121.1U, GND126.1U, GND221.1U, GND226.1U
Siemens Building Technologies GND121.1U
Siemens Building Technologies GND121.1U, GND126.1U, GND221.1U, GND226.1U
Discontinued - Contact Us For Pricing & Availability

Product Details

Two-Position Actuator Spring Return Shaft Type Set Screw Shaft Coupling Torque (In.-Lbs.) 53 Stroke Deg 90 Height (In.) 8 Width (In.) 2-½ Depth (In.) 3-¼ Timing (Sec.) 15 Voltage 24 VAC/VDC Includes Hex Key

Attributes

Max Temp 140 °F
NSR/SR Actuator Spring Return
Actuator Type Electronic
Fail-safe Position Fail Safe
Control Signal Type 2-position
Nominal Voltage 24 VAC/DC
NEMA Rating NEMA 1, die-cast aluminum alloy enclosure
Damper Actuator Torque 53 lb-in
Plenum Rating Standard
Damper Actuation Application Fire/Smoke Control Damper
Cable Length 3 ft
Damper Actuation Style Rotary
Stroke Degrees 90 °
Power Consumption Running: 20 VA / 12W, Holding: 8 VA / 6 W
Watts 6
VA Rating 8
Color Aluminum metallic

Specifications

SKUCS3013768
MPNGND121.1U
UPC/EAN4034106331368
