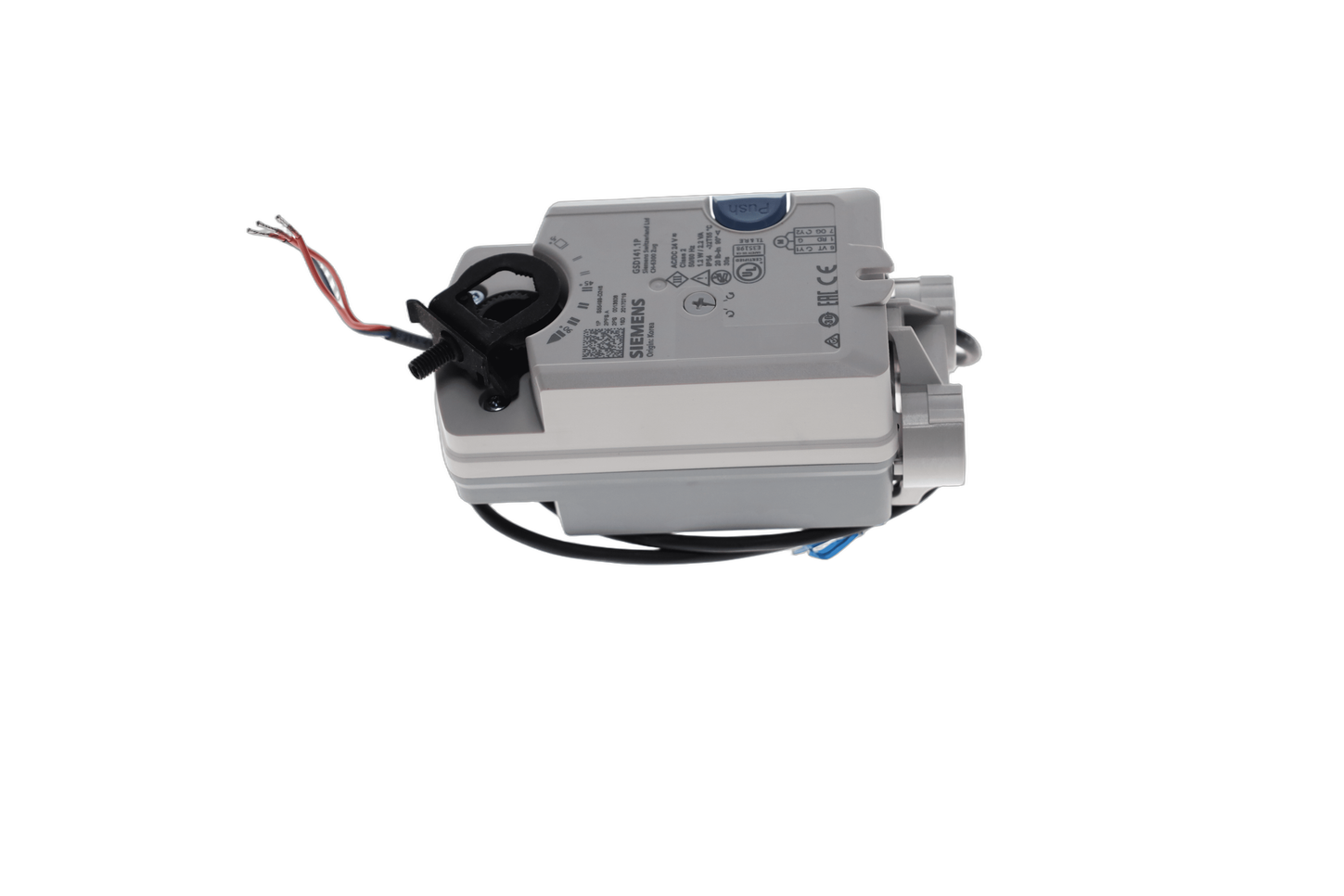

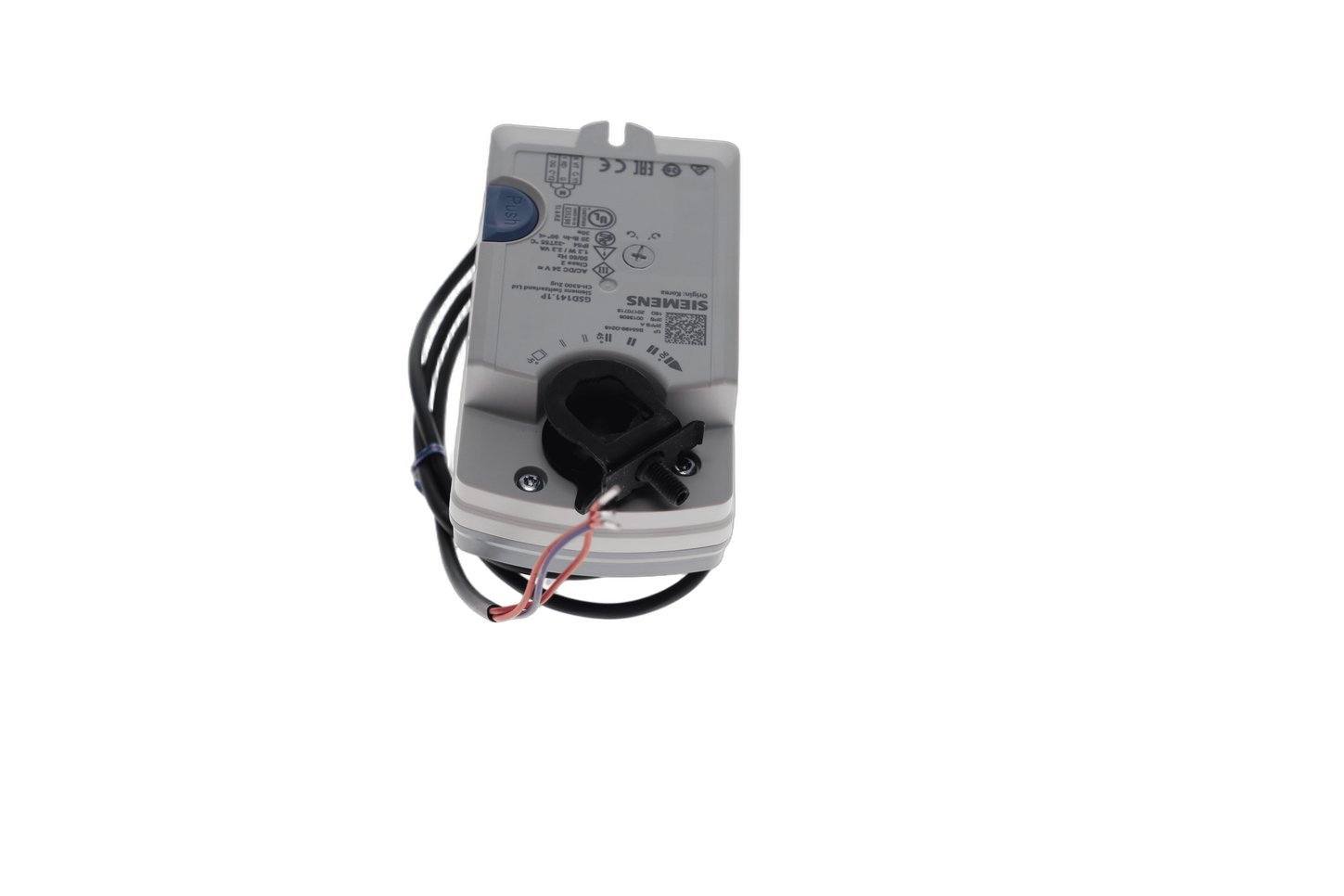

Siemens GSD141.1P
SKU: CS3748705MPN: GSD141.1PUPC/EAN: 4047625002442
Damper Actuator 20 lb-in,NSR,Floating
$112.89
Unit29 in stock
Product Details
Damper Actuator 20 lb-in 2-position/floating control, non-spring return, 24VAC/DC compatible and plenum rated. Used for low torque VAV applications and small dampers.
Attributes
| Actuation Style | Rotary |
| Actuator Type | Non-spring return |
| Ambient Temperature Operation | -25 to 130 °F, -32 to 55 °C |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 2-position;Floating control |
| Fail Safe | No |
| Frequency | 50/60 Hz |
| Material Housing | IP54 enclosure, Plenum rated rugged plastic |
| Operating Voltage | 24 VAC;24 VDC |
| Plenum Or Standard Rating | Plenum |
| Position Feedback | No |
| Positioning Time | Runtime for 90° 30 s |
| Power Consumption | Running: 2.2 VA (1.2 W), Holding: 1.0 VA (0.5 W) |
| Supply Voltage | 24 VAC/DC |
| Torque | 20 lb-in |
Specifications
| SKU | CS3748705 |
|---|---|
| MPN | GSD141.1P |
| UPC/EAN | 4047625002442 |
