Omega LCL-005

Name: Omega LCL-005
Brand: Omega
SKU: CS5802840
Price: 240.35 USD
Availability: OutOfStock

SKU: CS5802840MPN: LCL-005

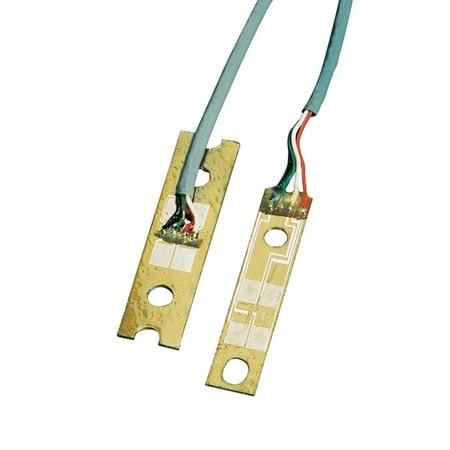

Full Bridge, Thin Beam Load Cell for Low Capacities

$240.35

Unit

Available on backorder

Quantity

remove

add

Documents

Measures Force, or Displacement
Thermally Matched, Fully Active, Full Bridge Gage for Optimum Temperature Tracking

Length	1.25 in
Linearity	± 0.50%
Materials	Stainless Steel, Urethane
Series ID	LCL
Force Type	Compression
Hysteresis	± 0.50%
Wire Gauge	30 AWG
Cable Length	9 in
Repeatability	± 0.50%
Safe Overload	150% FS
Load Cell Type	Bending Beam
Supply Voltage	5 Vdc
Input Resistance	1200 ± 300 Ω
Country of Origin	China
Electrical Output	2 mV/V
Output Resistance	1200 ± 300 Ω
Supply Power Note	5 Vdc, 12V max
Load Cell Capacity	5 lbF
Zero/Balance Error	± 0.75 mv/V
Thermal Span Effect	0.02%/°F
Thermal Zero Effect	0.02% FS/°F
Electrical Connection	Cable
Full Scale Deflection	0.05 in
Insulation Resistance	1000 Ω @ 50 Vdc
Wiring/Connector Table	Red: (+) Excitation; Black: (-) Excitation; Green: (+) Signal; White: (-) Signal
Process Temperature, Max	49 °C
Process Temperature, Min	-7 °C
Operating Temperature, Max	93 °C
Operating Temperature, Min	-54 °C

SKU	CS5802840
MPN	LCL-005
