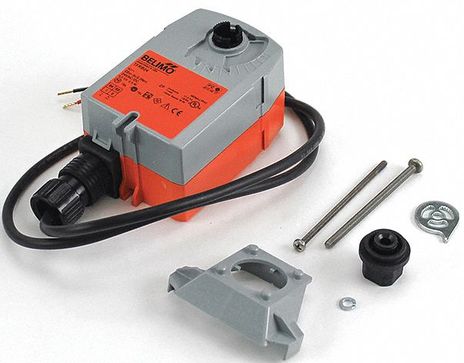

Belimo TFRB24

Name: Belimo TFRB24
Brand: Belimo
SKU: CS3016489
Price: 237.03 USD
Availability: OutOfStock

SKU: CS3016489MPN: TFRB24

Valve Actuator, Spring return, AC/DC 24 V, On/Off

$237.03

Unit

Available on backorder

Quantity

remove

add

Documents

Valve Actuator, Spring return, AC/DC 24 V, On/Off

Control	On/Off
Fail-Safe	Spring Return
Nominal Voltage	AC/DC 24 V
Transformer Sizing	5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	2.5 W
Power Consumption In Rest Position	1.3 W
Electrical Connection	18 GA appliance cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic throughout 0…95° rotation
Position Feedback	No Feedback
Angle Of Rotation	Max. 95°, 90°
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	75 s
Running Time Fail-Safe	<75 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP42
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	UL94-5VA
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	50 dB(A)
Quality Standard	ISO 9001
Noise Level, Fail-Safe	50 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
