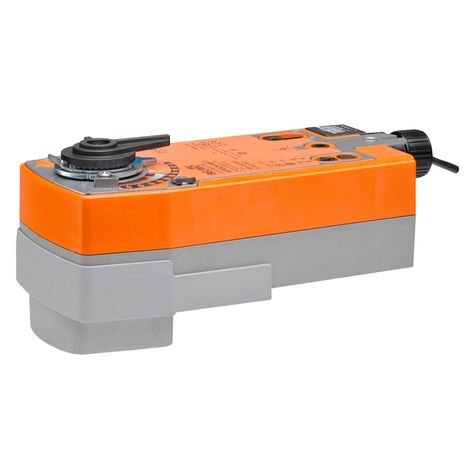

Belimo AFRXUP

Name: Belimo AFRXUP
Brand: Belimo
SKU: CS4062341
Price: 472.77 USD
Availability: OutOfStock

SKU: CS4062341MPN: AFRXUP

Configurable, Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off

$472.77

Unit

Available on backorder

Quantity

remove

add

Documents

Configurable Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off

Control	On/Off
Fail-Safe	Spring Return
Nominal Voltage	AC 24…240 V / DC 24…125 V
Transformer Sizing	7 VA @ AC 24 V (class 2 power source), 8.5 VA @ AC 120 V, 18 VA @ AC 240 V
Enclosure	UL Enclosure Type 2
Power Supply	24…240 VAC, -20% / +10%, 50/60 Hz, 24…125 VDC, ±10%
Power Consumption In Operation	7 W
Power Consumption In Rest Position	3.5 W
Electrical Connection	18 GA appliance cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic throughout 0…95° rotation
Angle Of Rotation	90°
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	75 s
Running Time Fail-Safe	<20 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Nominal Voltage Dc	24…125 V
Nominal Voltage Ac	24…240 V
Noise Level, Motor	45 dB(A)
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
